Desktop Type BMS Testing Equipment for Integrated Independent Synchronous Board
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS32-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | PBTS32-150 | Type: | Desktop |
|---|---|---|---|
| Serials: | 32 | Voltage Input: | AC220V/50Hz |
| Reference Voltage: | LiCoO3(3.8V) LiFePO4(3.0V) | Balanced Real Time Current: | 0-1000mA |
| Single Section Self Consumption: | 0-500uA | Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) |
| Loop Internal Resistance: | 0-500mΩ | Short Circuit Protection (more Than 6 Strings): | 0-9999us |
| Highlight: | Desktop BMS Testing Equipment,Desktop BMS Testing Machine,BMS Testing Equipment Semi Automatic |
||
Product Description

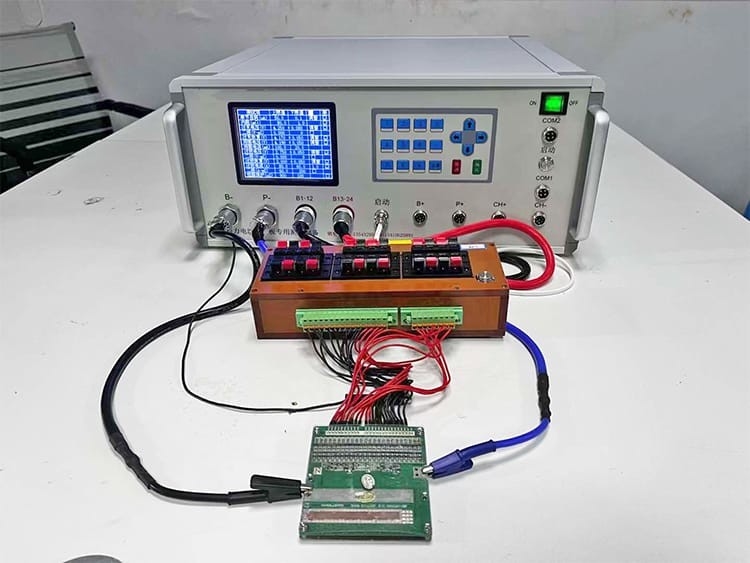

Integrated Independent Synchronous Board Can Be Tested Protection Board Tester
BMS Tester Features
1. The system adopts dual display screens, one is a built-in screen of 128×64, and the other is a touch screen of 800×480, the test is displayed in real time, and the parameter setting is convenient
2. The system provides 30 channels of high-brightness dual-color LED lights for display in rows, and instantly displays the test results of each battery protection board, which is stable and clear, simple and clear
3. Provide external extension button - "E-SCAN" button, suitable for quick test in production
4. Support short circuit protection for each channel
5. The system has low power consumption, beautiful appearance, firm structure and easy to carry
BMS Tester Description
It is a new type of high-speed lithium battery protection board (BMS) tester, which supports simultaneous testing of 4 to 8 battery protection boards, and can perform fast function detection on up to 30 channels. The main functions of the detection include channel leakage current, channel equalization current, charge and discharge Power MOSFET on-resistance, battery cell channel overvoltage protection and release function, battery cell channel undervoltage protection and release function, and protection delay time function.
BMS Tester Specifications
| NO. | Items | Measuring Range | Accuracy |
| 1 | Number of test strings | 1-32 | |
| 2 | Reference voltage | LiCoO3(3.8V) LiFePO4(3.0V) | |
| 3 | Overcharge protection voltage | 0.5-5V | ±5mV |
| 4 |
Over discharge protection voltage
|
0.5-5V | ±5mV |
| 5 |
Overcharge recovery voltage (self recovery)
|
0.5-5V | ±5mV |
| 6 | Over discharge recovery voltage (self recovery) | 0.5-5V | ±5mV |
| 7 | Overcharge protection current | 1-40A | ±0.1A |
| 8 | Over discharge protection current | 1-150A | ±0.1A |
| 9 | Balanced opening voltage | 0.5-5V | ±5mV |
| 10 | Balanced real time current | 0-1000mA | ±1mA |
| 11 | Over current protection delay | 0-15S | ±1mS |
| 12 | Overcharge protection delay | 0-20S | ±1mS |
| 13 | Over discharge protection delay | 0-20S | ±1mS |
| 14 | Single section self consumption | 0-500uA | ±1uA |
| 15 | Loop internal resistance | 0-500mΩ | ±1mΩ |
| 16 | Short circuit protection (more than 6 strings) | 0-9999us | ±1uS |
|
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to
|
|||
