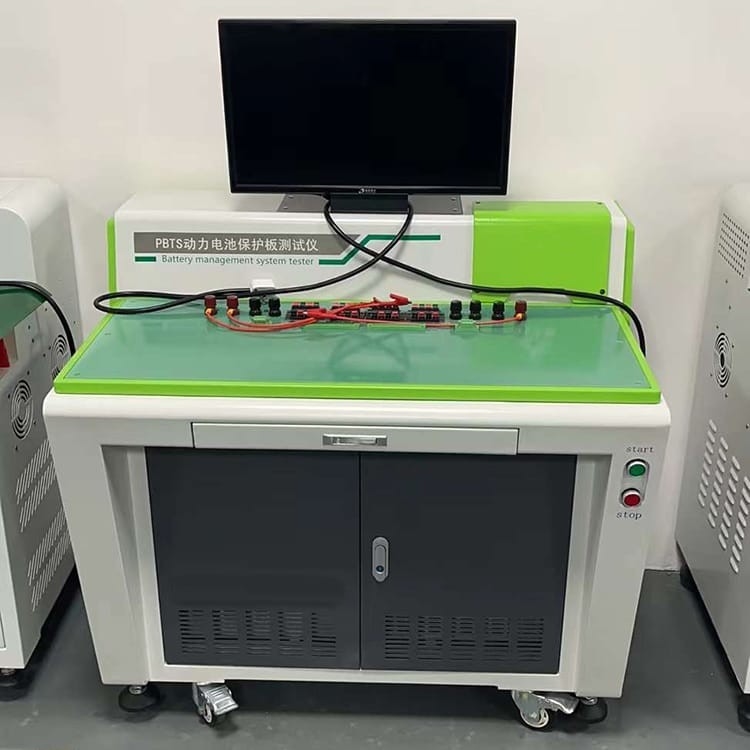

Protection Board PCM BMS Testing Machine Lithium Battery Protection Board Detection
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS32-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 14000 - 16500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model Number: | PBTS32-150 | Serials: | 1-32 |
|---|---|---|---|
| Type: | Manual | Voltage Input: | AC220V/50Hz |
| Reference Voltage: | LiCoO3(3.8V) LiFePO4(3.0V) | Balanced Real Time Current: | 0-1000mA |
| Single Section Self Consumption: | 0-500uA | Over-discharge Protection Current Protection Value: | 1A-200A ±0.1 (continuous Long-term Discharge) |
| Loop Internal Resistance: | 0-500mΩ | Short Circuit Protection (more Than 6 Strings): | 0-9999us |
| Highlight: | PCM BMS Testing Machine,Protection Board BMS Testing Machine |
||
Product Description
Protection Board Tester PCM BMS Lithium Battery Detection Lithium Battery Protection Board
BMS Tester Features
1. Support two detection modes (full channel automatic scanning detection mode, single channel independent trigger detection mode)
2. Support 30 channels to simulate battery voltage output, and can simulate charging overvoltage and discharging undervoltage for any channel at the same time
3. Support user-defined test of intelligent protection board, RS485 control
4. Support discharge overcurrent VDOC voltage simulation test, RS485 control
5. The number of test strings, the number of test boards, and various protection parameters can be set arbitrarily, and automatically saved in the system's internal memory EEPROM
6. Provide 4 RS485 communication output interfaces and 12V power supply output, which can directly communicate with external display screens, system expansion boards, etc.
7. Built-in safety alarm buzzer, which provides buzzer when the system is connected, key action, and channel test is completed
BMS Tester Description
It is a new type of high-speed lithium battery protection board (BMS) tester, which supports simultaneous testing of 4 to 8 battery protection boards, and can perform fast function detection on up to 30 channels. The main functions of the detection include channel leakage current, channel equalization current, charge and discharge Power MOSFET on-resistance, battery cell channel overvoltage protection and release function, battery cell channel undervoltage protection and release function, and protection delay time function.
BMS Tester Specifications
| NO. | Items | Measuring Range | Accuracy |
| 1 | Number of test strings | 1-32 | |
| 2 | Reference voltage | LiCoO3(3.8V) LiFePO4(3.0V) | |
| 3 | Overcharge protection voltage | 0.5-5V | ±5mV |
| 4 |
Over discharge protection voltage
|
0.5-5V | ±5mV |
| 5 |
Overcharge recovery voltage (self recovery)
|
0.5-5V | ±5mV |
| 6 | Over discharge recovery voltage (self recovery) | 0.5-5V | ±5mV |
| 7 | Overcharge protection current | 1-40A | ±0.1A |
| 8 | Over discharge protection current | 1-150A | ±0.1A |
| 9 | Balanced opening voltage | 0.5-5V | ±5mV |
| 10 | Balanced real time current | 0-1000mA | ±1mA |
| 11 | Over current protection delay | 0-15S | ±1mS |
| 12 | Overcharge protection delay | 0-20S | ±1mS |
| 13 | Over discharge protection delay | 0-20S | ±1mS |
| 14 | Single section self consumption | 0-500uA | ±1uA |
| 15 | Loop internal resistance | 0-500mΩ | ±1mΩ |
| 16 | Short circuit protection (more than 6 strings) | 0-9999us | ±1uS |
|
Scope of Application:All hardware scheme protection boards and some software boards on the market (special test items need to
|
|||
