Automatic Double Side Spot Welding Machine For 18650 Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Warranty: | 1 Year |
|---|---|---|---|
| Key Selling Points: | High-accuracy | User Interface: | Touch Screen |
| Power Source: | 5000A / 8000A / 10000A Optional | Efficiency: | 3800pcs/h |
| Equipment Stroke: | 500*350 (mm) About 760 18650 Cells | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| Operating System: | Embedded System + Man - Machine Screen | Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) |
| Highlight: | Automatic Double-Side Spot Welding Machine,18650 Battery Pack Spot Welding Machine |
||
Product Description

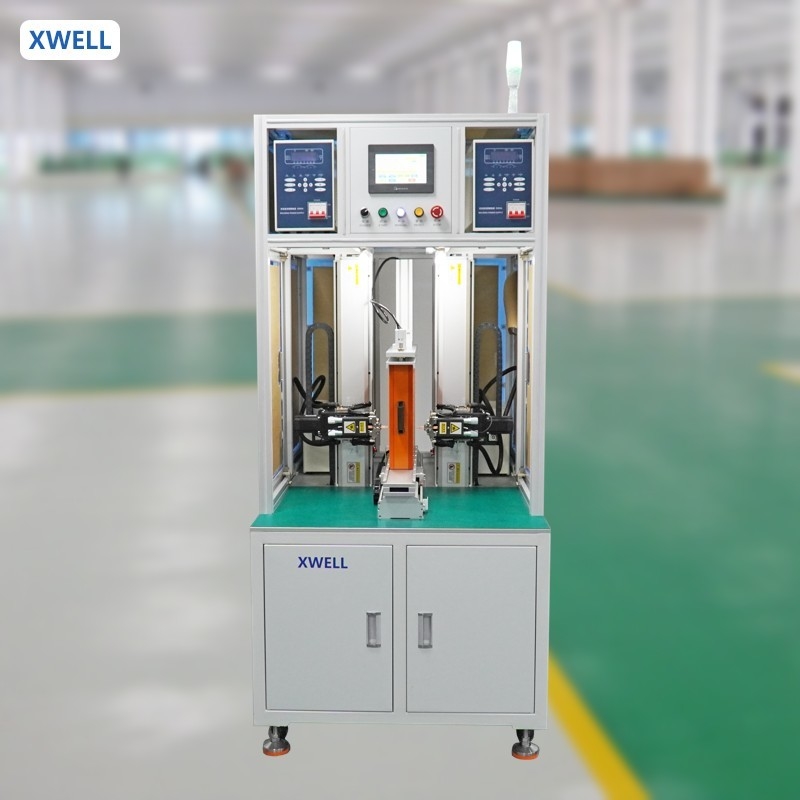

Automatic Double-Side Spot Welding Machine For 18650 Battery Pack
Introduction
1. Support breakpoint startup and Manual Start Mode Conversion.
2. High efficiency of double-sided automatic welding.
3. With welding current monitoring system, it can monitor welding current in real time.
4.Water-cooled circulating heat dissipation system is used in the self-contained welding needle compensation function to effectively reduce the loss of welding needles.
Working process
The double-sided automatic spot welding machine consists of working power supply, working platform, servo motor, operating system and so on.
Manually put the cell into the fixture, place the nickel sheet; push it into the automation platform, and then set the relevant parameters, array, etc., the welding work can be realized.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
