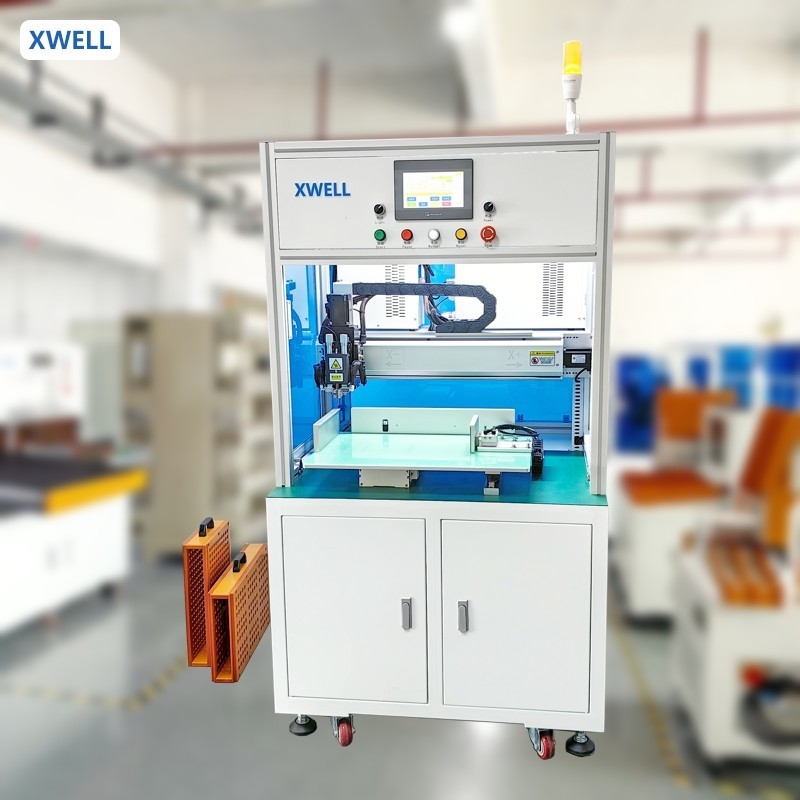

Automatic 18650 Cells Single Side Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Warranty: | One Years Limited Warranty |
|---|---|---|---|
| User Interface: | Touch Screen | Power Source: | 5000A / 8000A / 10000A Optional |
| Efficiency: | 3800pcs/h | Equipment Stroke: | 500*350 (mm) About 760 18650 Cells |
| Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) | Operating System: | Embedded System + Man - Machine Screen |
| Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) | ||
| Highlight: | Automatic 18650 Cells Spot Welding Machine,18650 Cells Spot Welding Machine |
||
Product Description
Automatic 18650 Cells Single Side Spot Welding Machine
his machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Product Specification
SPECIFICATIONS FOR MD-ASW AND MD-ADW | |||
| MD-ASW | MD-ADW | ||
Welding Head Number | 1 | 2 | |
Travel | X: 400mm; Y: 400mm | Y: 500mm; Z: 350mm | |
Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h | |
Welder Power Suppler | 5000A Inverter Spot Welder | ||
Max Motor Speed | 1000mm/s | ||
Max Battery Number | 450 pcs (18650) | ||
Operate System | Embedded system | ||
User Interface | Touch screen | ||
Drive Mode | Step motor and precision guide rail | ||
Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) | ||
Air Pressure | 0.3-0.6 MPa | ||
Machine Size | 900L*900W*1750Hmm | 1100L*900W*1930Hmm | |
Machine Weight | 200kg | 350kg | |
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
