Automatic Prismatic Lithium Cell Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Order(Moq): | 1 Set | Brand: | XWELL |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Automatic Prismatic Lithium Cell Sorting Machine,Prismatic Lithium Cell Sorting Machine |
||
Product Description
Automatic Prismatic Lithium Cell Sorting Machine
Main function:
Automatic Prismatic Cell Sorting machine, the main function is to test the voltage internal resistance of the prismatic lithium cells and automatically shift according to the set voltage internal resistance value
Product characteristics:
♦ Commissioning equipment is simple and easy to understand
♦ The manually paired battery pack is placed into the mold for the pairing inspection of the entire battery pack
♦ The feeding method manually piles the core and feed assembly line
♦ Hand inhaled automatically and 30 thickness core can be applied 30PCS
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

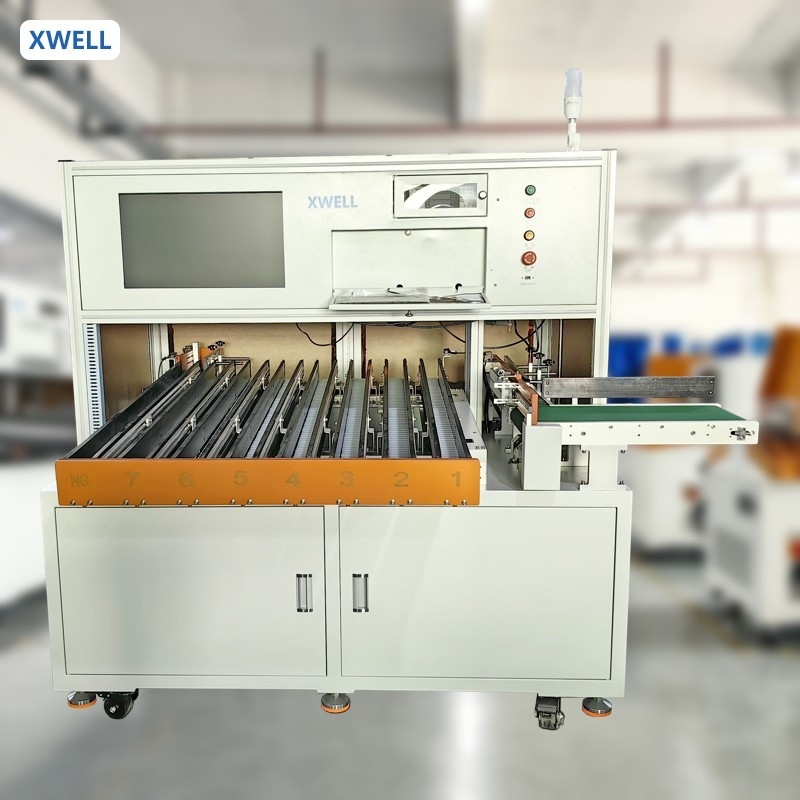

Prismatic Battery Cell Sorting Machine Details
