• Efficient Battery Cell Grading System Unlocking True Potential Of Battery Performance
Efficient Battery Cell Grading System Unlocking True Potential Of Battery Performance

Efficient Battery Cell Grading System Unlocking True Potential Of Battery Performance

Product Details:

Place of Origin: China
Brand Name: XWELL
Certification: CE
Model Number: MD-ADW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD 11000 - 15000 / pcs
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

Sample: MD-ADW Double-sided Automatic Spot Welding Machine Identification Number: 2
Power Source Current: 5000A / 8000A / 10000A Optional Equipment Stroke: 500*350 (mm) About 760 18650 Cells
Terminal Material: Aluminum Oxide Copper Spot Welding Speed: 0.5s/ Point; An Hour Efficiency Of 3,200-3,600 Batteries.
Max Speed Of Motor Drive: 1000mm/s Utmost Load Capacity: 200-400pcs(standard 18650 Lithium Battery)
Working System: Embedded System + Man - Machine Screen Transfer Mode: Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw)
Highlight:

Battery Performance Grading System

,

Battery Cell Grading System

,

Efficient Battery Cell Grading System

Product Description



Battery Cell Grading  Machine Adjust Telescopic Arm Welding Head Automatic Pulse Welding

  Product Description

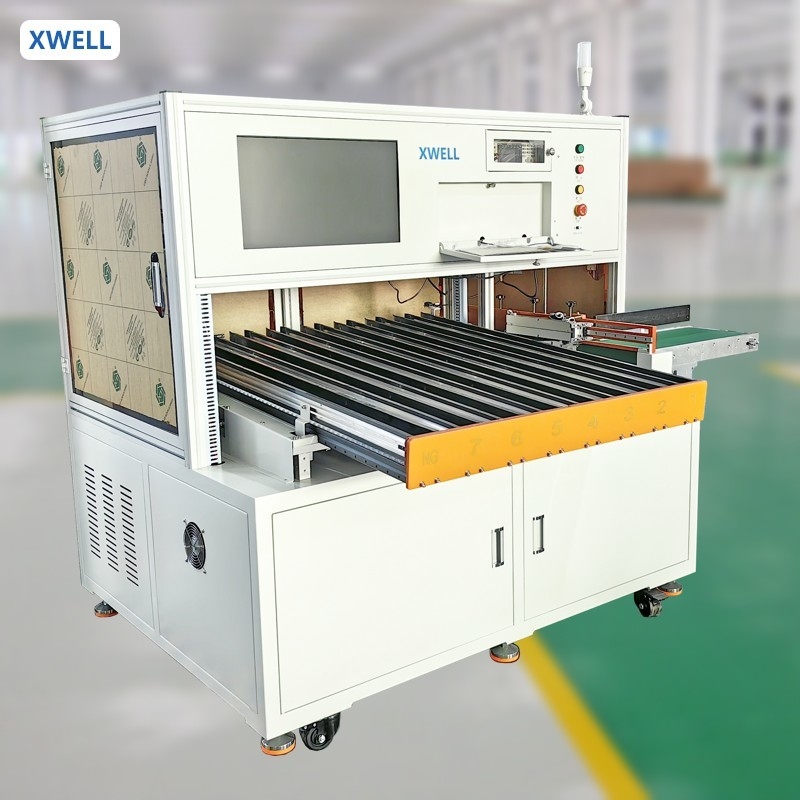

The Battery Cell Grading Machine is a state-of-the-art device. It accurately assesses battery cells based on multiple parameters. Ensures quality control in battery production, enhancing efficiency and reliability. User-friendly and efficient.


Battery Cell Grading Machine 的工作原理是什么?
有哪些不同类型的 Battery Cell Grading Machine?
如何选择适合自己需求的 Battery Cell Grading Machine?



With its reliable performance and innovative design, this machine is an indispensable asset for battery production facilities, enhancing productivity and delivering superior battery cells to the market.




Product Features
1. The welding voltage locking technology prevents the network voltage fluctuation from affecting the welding current;
2. Adjustable welding pulse width, small welding spatter, welds color no changing.
3. Two sections current monitoring and comparing function, abnormal current sound and light alarm, effectively preventing the rosin joint.
4. Fault self-diagnosis function, display the corresponding fault points,convenient maintenance.
5. Motion control card embedded programming module, automatically generate the welding pole movement track and save it in the system file through inputing the space and group number after confirming the relevant position. Super simple and easy to learn programming
6. 99 groups welding program and parameters data storage capacity in the system, switching program per different products.
7. Display screen: Touchable microcomputer, easy operation, multi-function, real-time monitoring the operation status & target capacity.
8. The welding pole equipped with photoelectric induction to ensure that the nickel strip located in position before spot welding, eliminating the false welding from the root.

Product Advantages
1. The equipment is made of aluminum alloy and sheet metal structure, which is firm and not easy to loosen, and ensures stability.
2. It is suitable for large-scale automatic spot welding of batteries.
3. The spot welding effect is stable and guaranteed.
4. high welding efficiency, take 18650 as an example: about 4600-5000PCS power core / Hour
5. spot welding die has anti-dull configuration, ordinary staff can debug equipment and operating equipment.
6. equipment with 200 sets of spot welding parameters storage, can quickly switch spot welding model.
7. Real-time welding current moniting,false welding or explosion alarm automatically shut down
8. The coordinate parameters of spot welding can be stored and exported by U Disk

Product Specification


Equipment name
MD-ADW double-sided automatic spot welding machine
Comprehensive aging
3600PCS/H
Equipment weight
330KG
Welding thickness
0.3mm exceeds the need for slotting
Equipment power supply
220V50/60HZ
Equipment power
8KW (including power supply)
Equipment stroke
500*350 (mm) about 760 18650 cells
Welding power source
Inverter / Transistor optional
Power consumption
0.8KW when busy, 0.2KW when idle
Movement mode
automatic continuous
Electrode Material
Alumina Copper
Cooling method
forced water circulation cooling
Dimensions
1100*900*1930 (mm)
Application Scenario
Mass Welding of Cylindrical Batteries
Power supply current
5000A / 8000A / 10000A optional


Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
