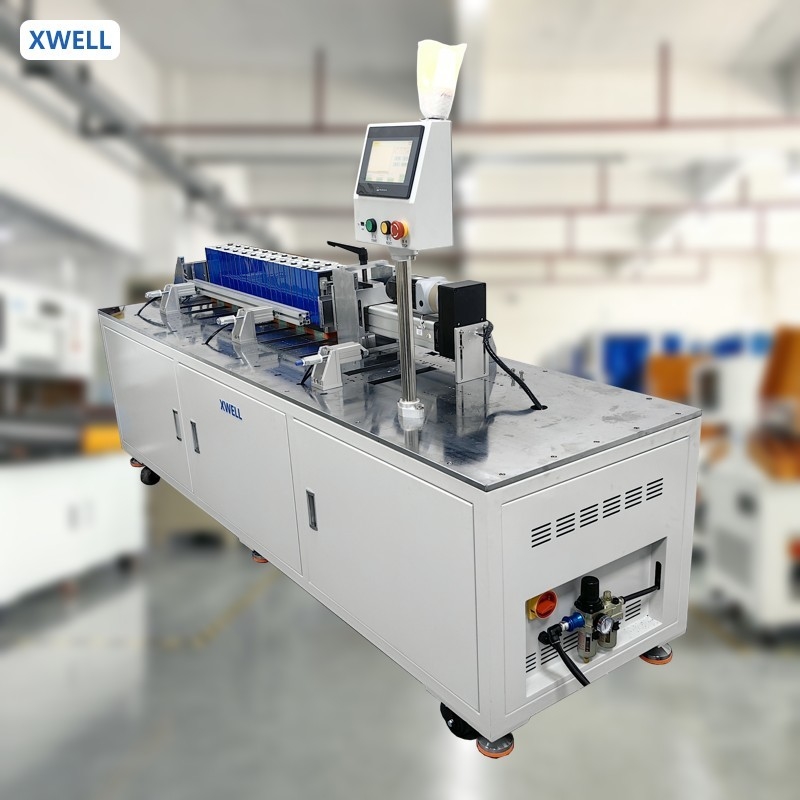

Prismatic Lithium Battery Cell Stacking And Pressing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| Order(Moq): | Order(Moq) | Product Origin: | China |
|---|---|---|---|
| Control System: | PLC | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Presssure Measure: | High Prcession Pressure Sensor | Position Accuracy: | 0.01mm |
| Highlight: | Lithium Battery Cell Stacking Machine,Lithium Battery Cell Pressing Machine,Prismatic Lithium Battery Cell Stacking Machine |
||
Product Description
Xwell Prismatic Lithium Battery Pack Module Stacking And Pressing Machine
Description
Prismatic Battery Pack Stacking and Pressing Machine is suitable for square lithium batteries to be stacked and extruded and trapped in the machine, the use of servo motors + screw module + planetary reducer for stacking and extrusion, controlled by the pressure controller, extrusion and stacking thrust up to more than 500KG, easy to change the type of control in a timely manner stacking and extrusion strokes and stacking pressure, software limit, hardware limits, pressure restrictions Triple protection function, will not over-extrude the battery, and the extrusion precision is highly controllable.
Features
-
7-inch touch screen with PLC for control, easy to operate.
-
Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
-
Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
-
Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.
Stacking machine specification
| Item | Name | Parameter |
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precession pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |
Stacking machine details
