New Designed Single Side Battery Pack Resistance Welder MD-Asw
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Control: | Automatic | Cooling Way: | Air Cooling |
|---|---|---|---|
| Key Selling Points: | Automatic | Welding Size: | 400*400mm And Customizable |
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | Automatic Battery Pack Resistance Welder,Single Side Battery Pack Resistance Welder,8000A Battery Pack Resistance Welder |
||
Product Description

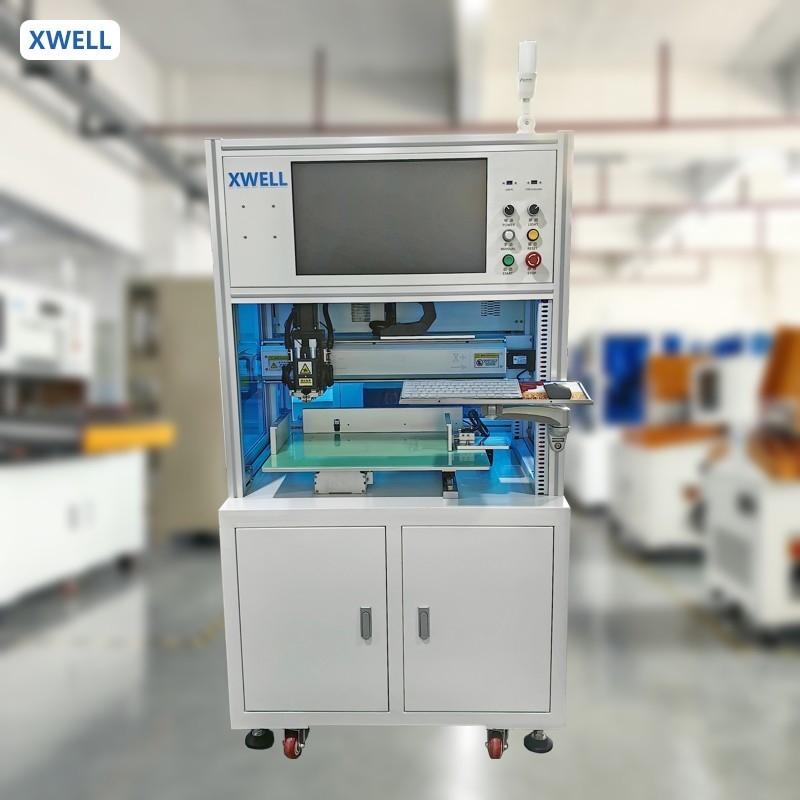

New Designed Single Side Battery Pack Resistance Welder MD-Asw
Automatic Big Size Battery Pack Spot Welder MD-ASW
The MD-ASW Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features:
Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding. Can be matched with the production line of lithium battery group. MD-ASW automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability. The fixture of the battery pack can be positive and negative 180 degree rotation and 180 degree reversal automatically, suitable for welding of battery pack of different shapes and connecting piece, can improve the production efficiency and the welding consistency. Can store dozens process of different battery packs product, switching products without re-setting parameters. Can match a variety brand of spot welders.
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
