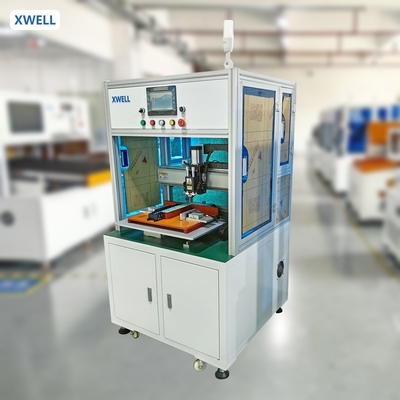

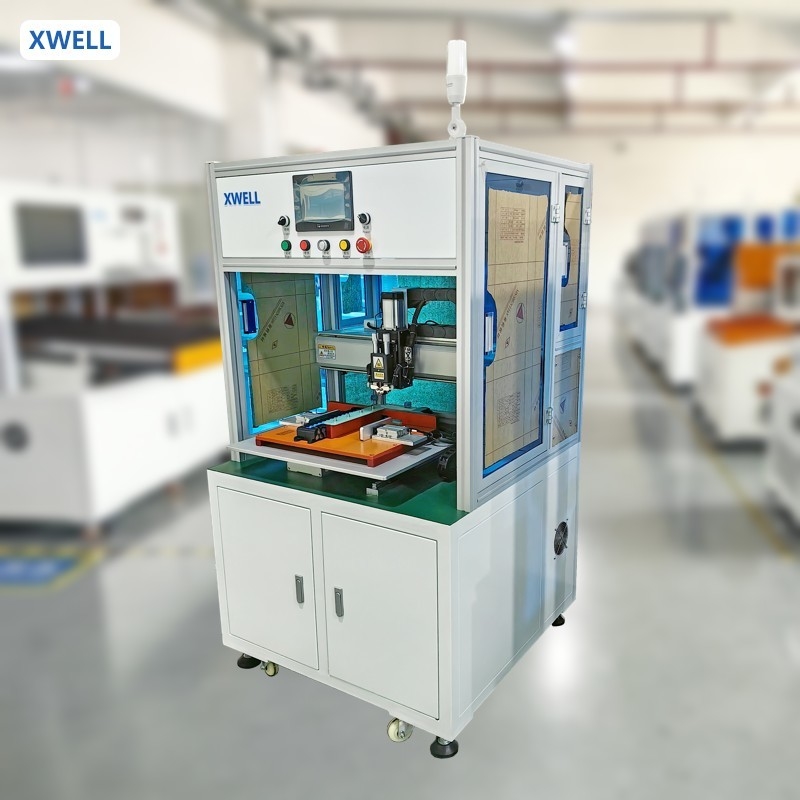

8000A 10000A Transistor Lithium Ion Battery Double Sided Spot Welder Automatic Battery Pack Spot Welding Machine With PC
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Customization: | Available | Cooling Wa: | Water Cooling |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Power: | 4000 W |
| Voltage: | 220V/380V(AC) | ||
| Highlight: | 10000A Battery Pack Spot Welding Machine,8000A Battery Pack Spot Welding Machine,PC Battery Pack Spot Welding Machine |
||
Product Description
8000A 10000A Transistor Lithium Ion Battery Double Sided Spot Welder Automatic Battery Pack Spot Welding Machine With PC
Description
double-sided spot welding machine is equipped with a 8000A/10000A transistor welding power supply, which has the function of detecting the contact resistance between the weldment or the weldment and the welding needle. It can be well utilized to detect the welding resistance before spot welding, avoiding damage to the weldment and the welding needle during welding, and achieving high-precision and high reliability welding.
Scope of application:
*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Build-in welding current monitor, can display real time welding current.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
