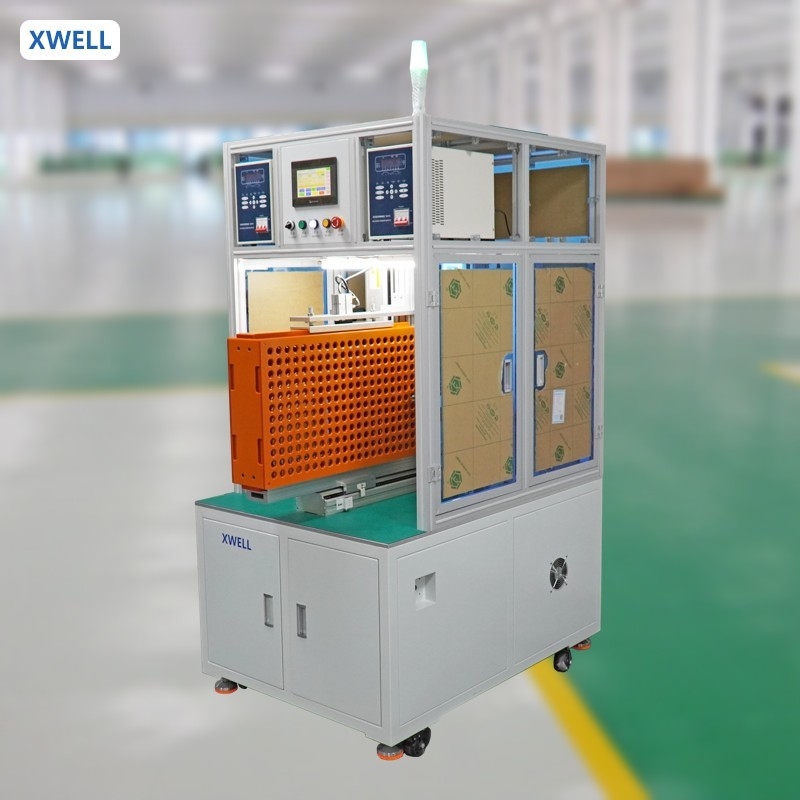

Double Side Spot Welder For Lithium-ion Batteries 220V/380V AC
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | Cylindrical Cell | Busbar Material: | Pure Nickel Strip Or Nickel-plated Steel Strip |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Power: | 4000 W |
| Voltage: | 220V/380V(AC) | ||
| Highlight: | Double side Spot Welder,Lithium-ion Batteries Spot Welder |
||
Product Description
Double side Spot Welder for Lithium-ion Batteries
Features
The spot welder for lithium-ion batteries is equipped with an inverter DC welding power source and has a welding power switch function. It can switch the welding current required by the positive and negative electrodes when welding cylindrical battery packs, which can effectively avoid the big difference in the effect of welding the positive and negative electrodes with the same welding current.
Scope of application:
The spot welder for lithium-ion batteries is suitable for the spot welding of cylindrical battery packs.
It is usually used for spot welding of pure nickel sheets and nickel-plated steel sheets with a thickness of 0.1~0.3mm.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
