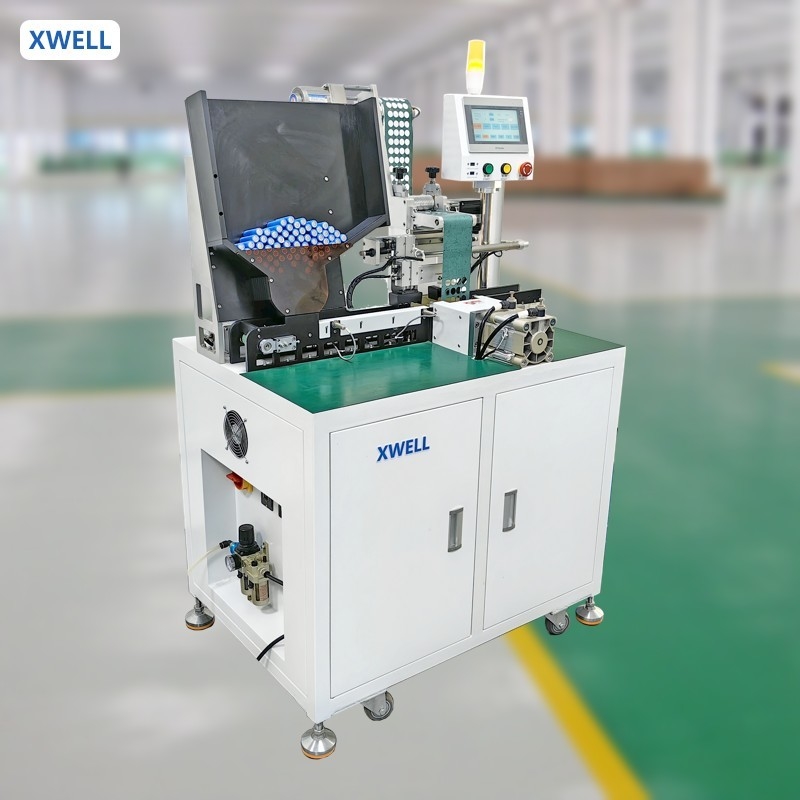

18650 21700 32650 Terminal Insulation Paper Sticking Machine Sticker For Lithium Cylindrical Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| After-sales Service: | 1 Year | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Paper Size: | 100mm Paper Total Thickness 0.3mm |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | 21700 Terminal Insulation Paper Sticking Machine,32650 Terminal Insulation Paper Sticking Machine,18650 Terminal Insulation Paper Sticking Machine |
||
Product Description
18650 21700 32650 Terminal Insulation Paper Sticking Machine Sticker For Lithium Cylindrical Battery Pack
Product description:
Minder-Hihghtech have a professional engineering and technical service team, provide lithium battery PACK automatic production line, lithium battery assembly technical guidance, and technical training.
We can provide you with a full line of equipment for battery pack production We can provide you with the most competitive price directly from the factory We can provide you with the most professional after-sales service 7*24 hours
Scope of application:
Cylindrical Battery Sticking Machine is an automated equipment used to paste insulating barley paper on cylindrical batteries. This machine is controlled by PLC and adopts the mechanical structure of stepping motor and speed reducer to realize the function of the electric core barley paper. The number of finished cylindrical electric cores is about 4000 per hour. This equipment comes with a pre-test station (optional), and the special mechanical design greatly avoids the deviation of the sticker position, and improves the stability of the equipment and the consistency of the product.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth |
100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device |
7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |
Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
