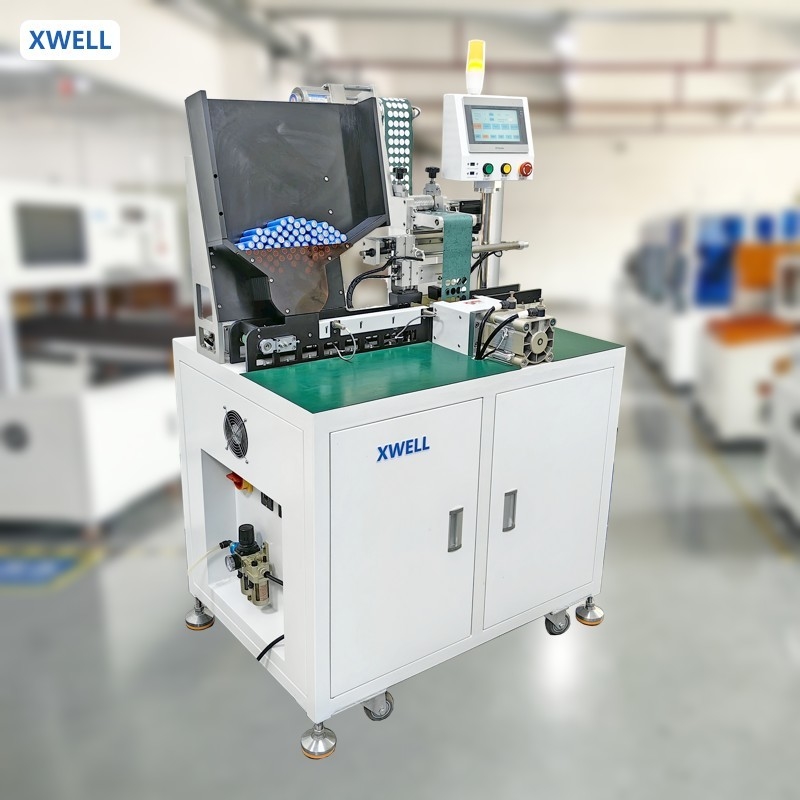

Automatic 18650 Battery Insulation Paper Sticking / Pasting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Mode: | MD-BSM | Productivity: | 4800pcs/hour (Single Pad 4pcs) |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Paper Size: | 100mm Paper Total Thickness 0.3mm |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | Pasting Battery Insulation Paper Sticking Machine,18650 Battery Insulation Paper Sticking Machine,Automatic Battery Insulation Paper Sticking Machine |
||
Product Description
Automatic 18650 Battery Insulation Paper Sticking/Pasting Machine
Product description:
The automatic 18650 battery insulation paper sticking/pasting machine is a battery positive/negative poles labeling machine for 18650/21700/26650 cylindrical lithium battery cells. The paper fits firmly, and the sticker is stable, consistent and durable.
Features:
1. Good long-term stability and high production efficiency, stick 4800pcs/ hour.
2. Through manual loading and simple settings, the battery insulation barley paper sticking paste process can be completed.
3. Efficient and fully automatic, saving labor costs.
4. The paper fits firmly, and the sticker is stable, consistent and durable.
5. The equipment is compact in structure, beautiful in appearance and small in area.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth |
100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device |
7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |
Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
