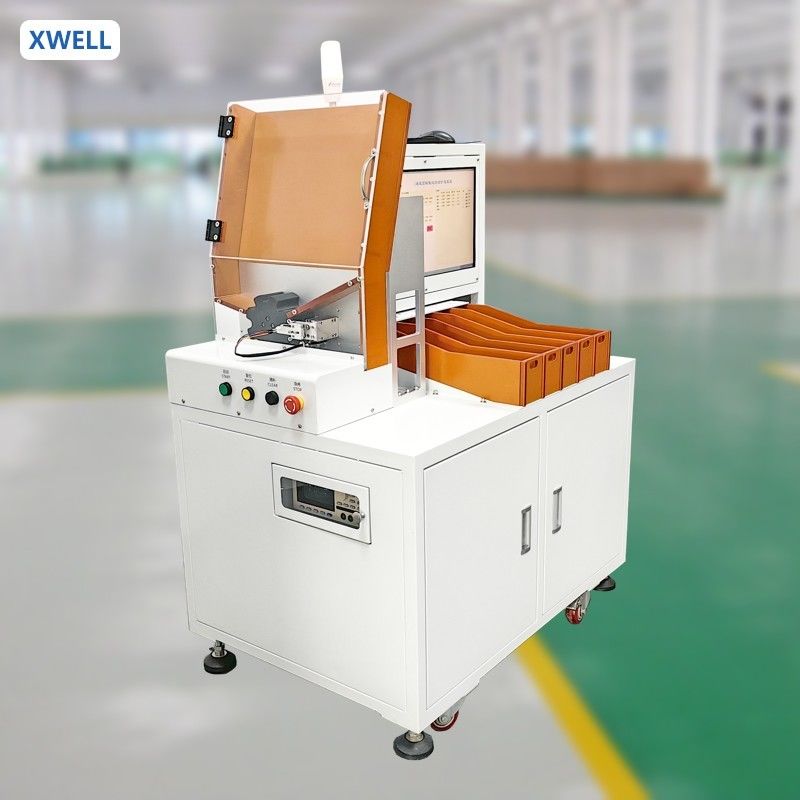

Cylindrical Cell IR Voltage Tester / Sorter 5 Channel Power Battery Testing And Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Place Of Origin: | China | Core Components: | Motor, PLC |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | Power Battery Testing And Sorting Machine,Cylindrical Battery Testing And Sorting Machine |
||
Product Description
Cylindrical Cell IR Voltage Tester/Sorter 5 Channel Power Battery Testing And Sorting Machine
Features:The 18650 cell sorting test system is suitable for voltage and internal use of the 18650 battery core of the cell factory. Resistance sorting test. The electrical control part of the sorting system adopts modular design, with high integration, good general purpose and convenient maintenance; The actuator adopts servo motor control with high precision and good reliability. The number of receiving slots of the equipment is 5 slots, and the voltage and internal resistance can be set arbitrarily, and the sorting efficiency is high. Bring high precision Internal resistance and voltage automatic test system, the device can accurately feed the battery according to the set internal resistance and voltage value. Go to the specified gear. The equipment adopts the box type feeding, the robot automatically divides the material, and the personnel manually collects the materials. Really realized 18650 Automation of cell sorting. This equipment can test about 3500-4000 sets of batteries per hour, and the structure design is simple and generous, and the performance is stable. It is the most cost-effective sorting device on the market so far.
Functional description:The 18650 battery five-speed sorting machine is suitable for the voltage and internal resistance sorting test of the 18650 battery core which is divided by the battery factory. The electrical control part of the sorting system adopts modular design, with high integration, good general purpose and convenient maintenance. The actuator adopts stepper motor control with high precision and good reliability. The number of receiving slots of the equipment is 5 slots, and the voltage and internal resistance can be set arbitrarily. The sorting efficiency is high, and the battery can be accurately sent to the specified gear according to the set internal resistance and voltage value. The equipment adopts the box type feeding, the cylinder automatically divides the material, and the personnel manually collects the materials. Realize the automation of 18650 cell sorting.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
