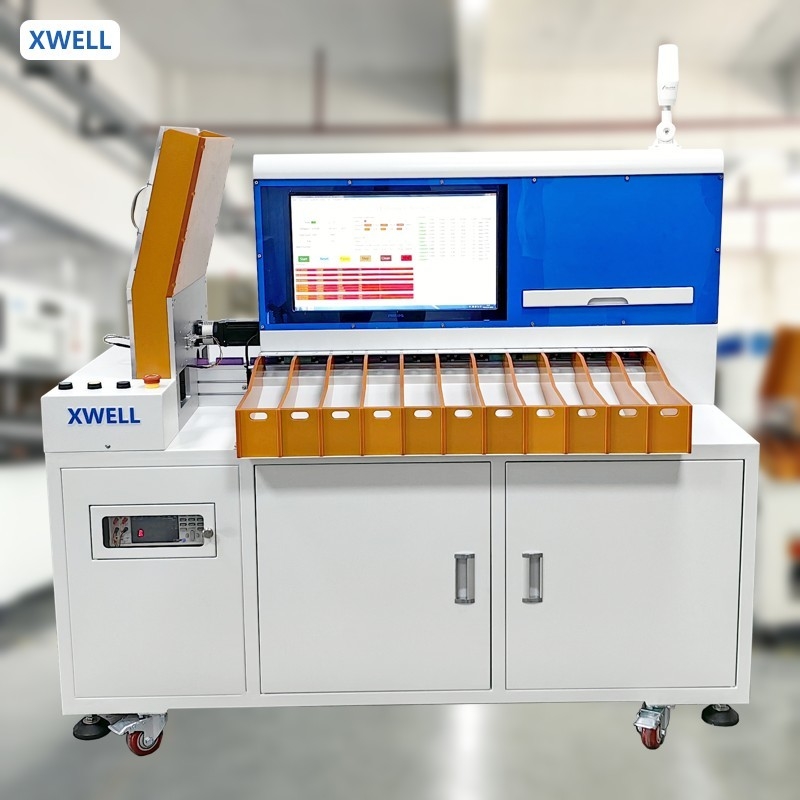

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Version: | Touch Screen | Channel: | 11 |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 32650 Battery Tester Sorter,21700 Battery Tester Sorter,18650 Battery Tester Sorter |
||
Product Description
Cylindrical Battery Tester Sorter 18650 21700 32650 Battery
Feature
▶The sorting machine is for cylindrical battery voltage and internal resistance testing, and delivery the battery to diffierent channels according to the setting. ▶Have touch screen version and computer version. The computer version can save and output testing data. ▶The equipment is controlled by PLC and Pc. The PLC is responsible for battery feeding, battery handling and battery sorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving manpower, good product performance. ▶Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.
Why need sorting machine?
When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balance
| Product name | Auto sorting machine |
| Model No. | ACEY-AS11S |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80m, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01m | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L1430mm*W660mm*H1350mm |
| Weight |
<200Kg |
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
