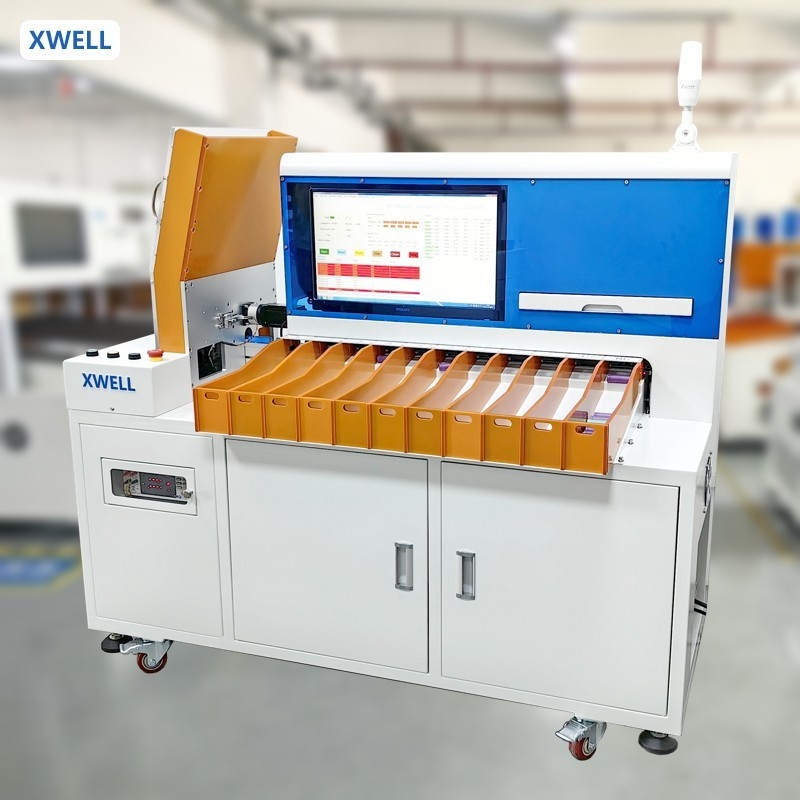

11 Channels 18650 21700 32650 Battery Cell Testing And Sorter
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Battery Support: | 18650,21700,32650...(optional) | Weight: | 300kg |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 18650 Battery Cell Testing And Sorter,32650 Battery Cell Testing And Sorter,21700 Battery Cell Testing And Sorter |
||
Product Description
11 Channels 18650 21700 32650 Battery Cell Testing And Sorter
The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.
How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.
| Product name | Auto sorting machine |
| Model No. | ACEY-AS11S |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80m, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01m | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L1430mm*W660mm*H1350mm |
| Weight |
<200Kg |
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
