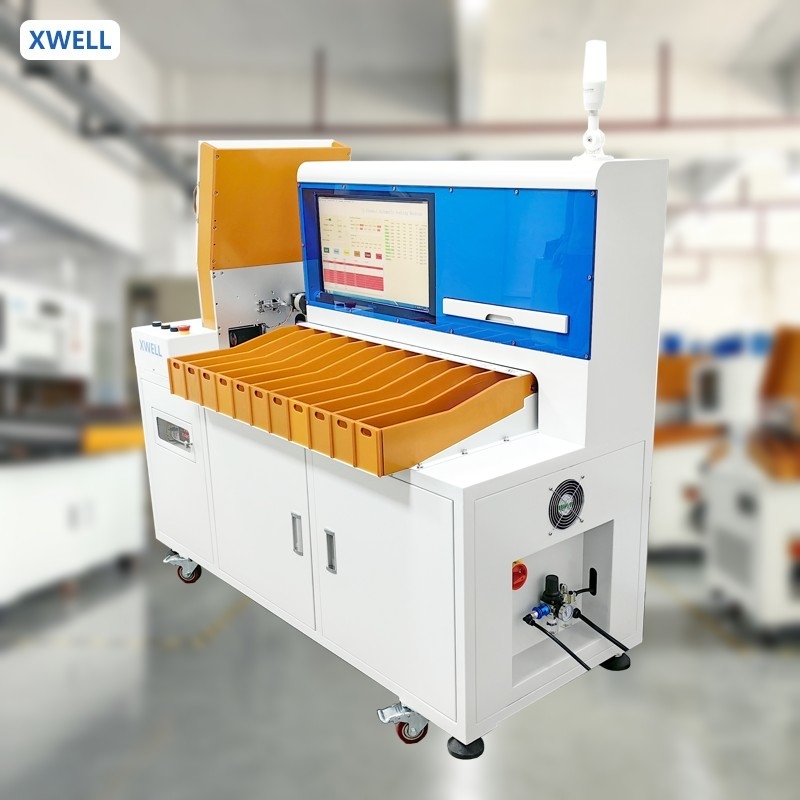

18650 26650 32650 21700 Cylindrical Battery Sorter Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | Other | Application Fields: | Battery |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | 18650 Battery Sorter,26650 Battery Sorter,32650 Battery Sorter |
||
Product Description
18650 26650 32650 21700 Cylindrical Battery Sorter Sorting Machine
Features
The 5/6/9/10/11/13/20/22 channel battery sorter of cylindrical battery automatic sorter is used for automatic sorting of voltage and internal resistance of 18650/21700/26650/32650 cylindrical cells. It can also separate voltage or internal resistance separately. This test and sorting is composed of PLC control + PC industrial computer, PLC control AC servo motor, stepping motor and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation. The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous, the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting equipment in the market.
Advantages
1. Stable control system
2. High configuration regulator
3. High Precision Work Procedure
4. High cost performance ratio of products
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
