| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-02 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Warranty: | 1 Year | Applicable Industries: | Energy & Mining |
|---|---|---|---|
| Voltage Testing Range: | AC 220V ±5% 50HZ | Voltage Supply: | 96,128,256,512,768 |
| Battery Type: | Soft Pack Battery | Current Range: | 10A 20A 30A |
| Highlight: | Pouch Cell Battery Charge Discharge Machine,Capacity Grading Battery Charge Discharge Machine,512 Channels Battery Charge Discharge Machine |
||
XW-02 is mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.
2. Main feature
2.1 Each equipment can do constant current constant voltage charging and constant current discharge testing for 512 pcs of cell which is within the voltage range.
2.2 Constant current and constant voltage power supply, constant current to constant voltage switching without impact, especially suitable for lithium ion battery charging requirements.
2.3 This equipment adopts AVR single-chip computer as the control center, and cooperates with the peripheral sampling circuit, which can be controlled by the upper computer. When connected to the computer, the complete charge and discharge curve of all channels can be saved. Or it can be separated from the upper computer and operated by the control panel to complete constant current and constant voltage charging, constant current discharge test, etc.
2.4 Each battery has its own independent constant current and constant voltage source, and the self-forming loop does not affect each other.
Structure Of Equipment
| Model | XW-02 | |||
| Number Of Device Channels | 256 channels | |||
| Overall Dimension | Width 514.4mm× Depth 1684mm× Height 1840mm | |||
| Color | Standard off-white or off-black (customizable) | |||
| Jig Form | 65 Blue & white split clamp | |||
| Fixture Spacing | 150mm Battery spacing | |||
| Support Battery Specifications | Battery length: 0-180mm, width: 0-150mm, thickness: 8-15MM; | |||
| Battery tab center distance: 0-150mm | ||||
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ | |||
| Power Factor | 0.99@ 220VAC, full load, grid THDu ≤2% | |||
| Current Harmonic | <5%@ 220VAC, full load, grid THDu ≤2% | |||
| Power Consumption | ≤15 KW | |||
| Work Environment | Indoors, temperature is 10-30℃ under air convection. | |||
| Heat-Dissipating Method | Air cooling | |||

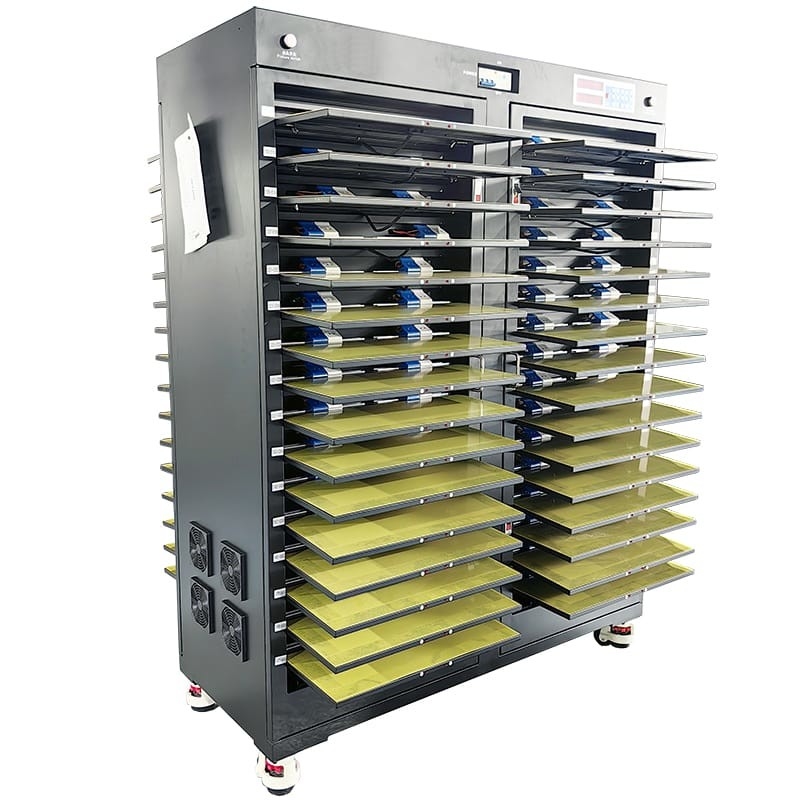

Piture:
