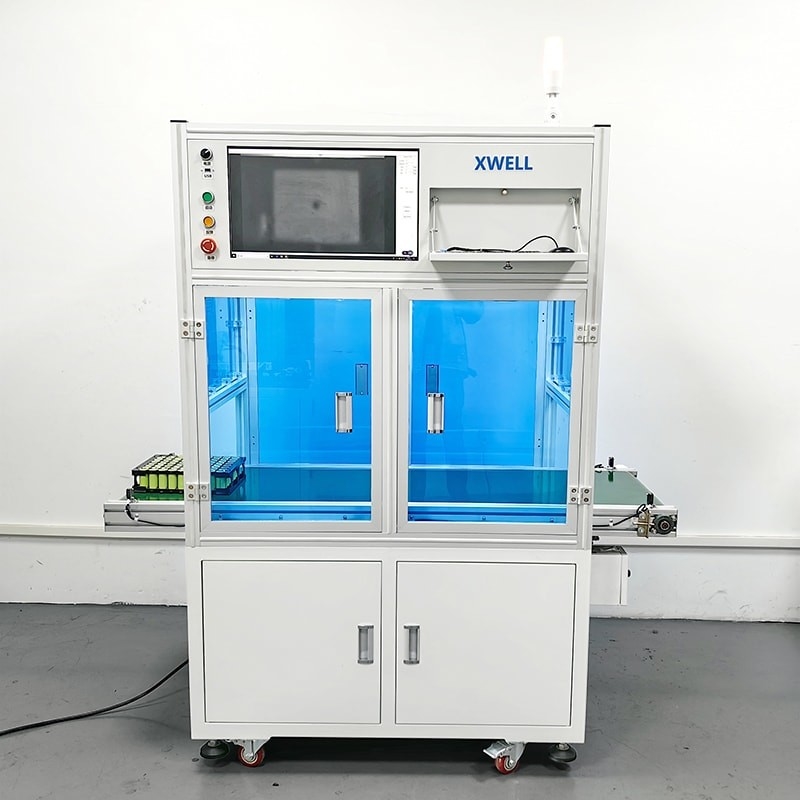

14430 14500 18500 18650 21700 CCD Cylinder Cell Battery Pack Tester For Lithium Cathode And Anode Position Testing
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-CCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Related Industry: | Lithium Ion Pack Battery | Machine Name: | Pack Battery CCD Tester |
|---|---|---|---|
| Test Speed: | 0.1-500mm/min | Working Voltage: | AC 220V 50Hz~60Hz |
| Itinerary: | 200mm | Control Method: | Computer Control |
| Voltage Range: | 0-150V | Charge Current: | 20A |
| Sustainable Load Power: | 6KW | Data Output: | EXCEL,TXT |
| Test Temperature: | 130C+2.0℃;( No-load Test) | Warranty: | 1 Year |
| Minimum Air Pressure: | 5.0KPa | Communication Means: | TCP/IP Protocol |
| Electric Axis Stroke: | ≥450mm | ||
| Highlight: | 18650 Battery Pack Tester,21700 Battery Pack Tester,14430 Battery Pack Tester |
||
Product Description
14430 14500 18500 18650 21700 CCD Cylinder Cell Battery Pack Tester For Lithium Cathode And Anode Position Testing
Introduction:
1.1 Power supply:0.3KW,220V AC current input,50HZ
Machine dimension: L800*W710*H1680MM
Machine weight: 80KG
1.2 Equipment function: For cylinder cell, Use camera collects positive and negative data, check the number of samples and the position of the positive and negative, quickly analyze the result (NG or OK), and confirm the position of NG, to confirm the positive and negative electrodes before the battery pack enters the spot welding. Prevent defects caused by incorrect position of the negative electrode
Feature
1.supports sudden power-off function, database works normally
2. This machine database, mainly for cylindrical battery positive and negative data, other categories are not compatible
3. Test speed:100pcs cell/1.5s
4. Detection accuracy: if the battery cell is not deformed or rusted, 100%
5. mass storage product parameters, call out parameters and direct detection
6. System Configuration
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
