Double Sides Spot Welding 18650 21700 Battery Pack Assembly Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
|---|---|---|---|
| Key Selling Points: | High-accuracy | User Interface: | Touch Screen |
| Power Source: | 5000A / 8000A / 10000A Optional | Efficiency: | 3800pcs/h |
| Equipment Stroke: | 500*350 (mm) About 760 18650 Cells | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| Operating System: | Embedded System + Man - Machine Screen | Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) |
| Highlight: | 18650 Battery Pack Assembly Machine,21700 Battery Pack Assembly Machine |
||
Product Description

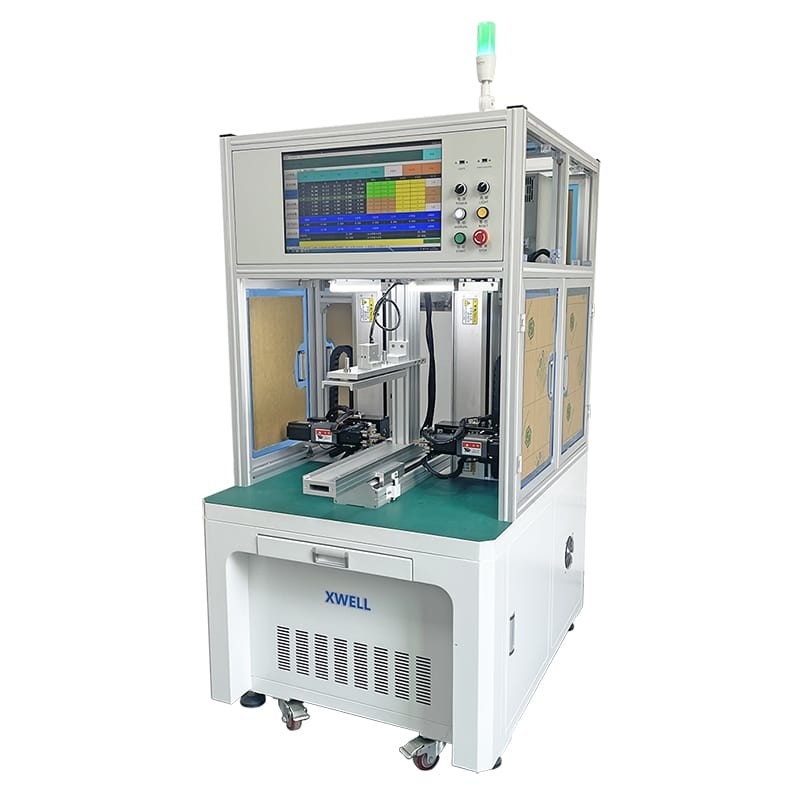

Double Sides Spot Welding 18650 21700 Battery Pack Assembly Machine
Product Description
1. Support breakpoint start, automatic start and manual start mode conversion;
2. It has the function of false welding and desoldering alarm;
3. programming simple, support any point programming and array programming, can save 99 groups of programming files;
4. The welding pin replacement prediction reminder;
Product Features
Product Advantages
1. Welding stroke can be customized
2. Suitable for various kinds of battery pack
3. High speed welding
4. 7-inch touch screen, more convenient operation, clearer display
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.
6. Can store up to 99 groups of files, the file issimple to call,
does not require complicated line changing process
7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons
8. Electric or pneumatic spot welding machine is optional
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
