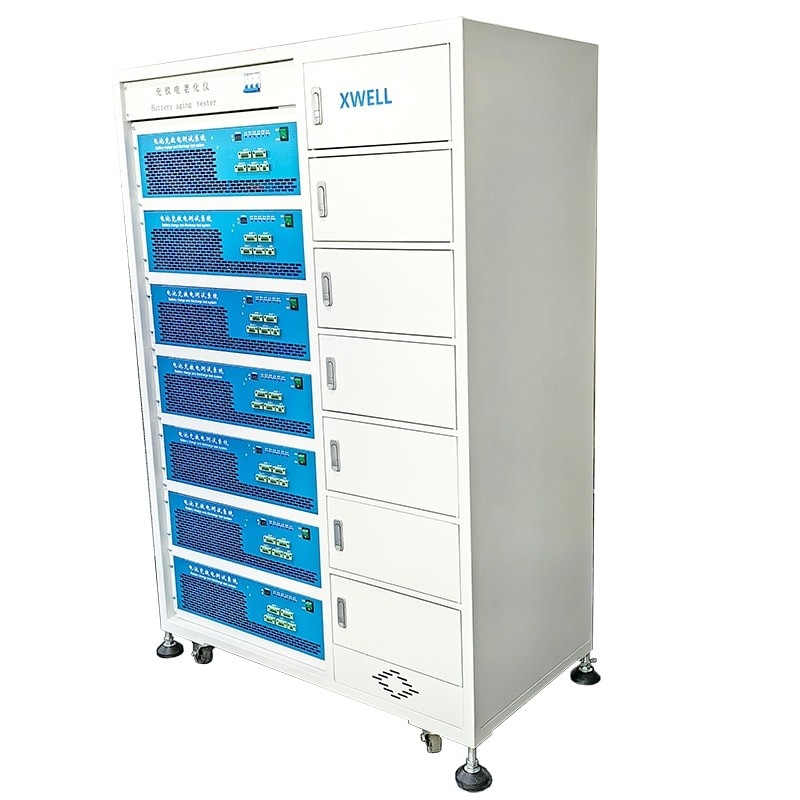

Lithium Ion Battery Forming Machine Grading Machine For Lithium Ion Battery Production Line
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | BCDS70-05-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 2000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Keyword: | Forming And Grading Machine | Supply 1: | Lithium Ion Battery Materials |
|---|---|---|---|
| Charging Range: | 50-5000mA | Charging Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Discharge Range: | 50-10000mA | Discharge Accuracy: | ±(0.2% Of Reading +0.2% Of Range) |
| Constant Voltage Cut-off Current: | Minimum 50mA | Discharge Power: | ≤700W |
| Inspection Time: | Real-time Collection<2S | ||
| Highlight: | Lithium Ion Battery Forming Grading Machine,Production Line Forming Grading Machine,Forming Grading Machine |
||
Product Description
Lithium Ion Battery Forming Machine Grading Machine For Lithium Ion Battery Production Line
Equipment application:
After the battery is produced, it is charged for the first time to activate the active material in the battery and at the same time generate a dense film on the surface of the cathode electrode to protect the entire chemical interface. After the formation is completed, the battery can start normal charging and discharging.
Equipment application:
Charge and discharge the battery to detect the discharge capacity when the sub-capacity is fully charged to determine the capacity of the lithium battery. The data of each detection point is obtained through computer management, so as to analyze data such as battery capacity and internal resistance, and determine the quality level of the battery.
Function Features:
1.with constant current and constant voltage charging function .
2.with constant current discharging function .
3.By charging and discharging the battery ,the charge protection and discharge protection of the battery can bedetected.
4. Charging and discharging the battery,record the charge capacity and discharge capacity of battery.
We assure you that we can offer you favorable prices, high quality products, and the most satisfactory service and also provide customers with a complete set of solutions in components. We have high-quality management team. High-level technical team and a group of well-trained, skilled workers. We have established friendly cooperation relationship with customers in many countries.
Product Specification
| Technical Parameter | ||
|
Input Power Supply |
Measuring Range | 7-70V |
| Accuracy | ±(0.2% of reading +0.2% of range) | |
|
Current
|
Charging Range | 50-5000mA |
| Charging Accuracy | ±(0.2% of reading +0.2% of range) | |
| Discharge Range | 50-10000mA | |
| Discharge Accuracy | ±(0.2% of reading +0.2% of range) | |
| Charge | Constant Voltage Cut-off Current | Minimum 50mA |
| Capacity | Accuracy | ±1% |
| Power | Discharge Power | ≤700W |
| Time | Inspection Time | Real-time Collection<2S |
| Timing Range | 0-999h/step | |
| Data Recording Interval | ≥5S | |
| Middle Machine Version | 1:1 series | |
| Number of Passages Per Cabinet | 12 channels, four rows and three column | |
|
Charge
|
Charging Mode | Constant Current and Constant Voltage Charging |
| Cut-off condition | Voltage, Current, Relative Time, Overcharge Protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, Relative Time and Over-discharge Protection | |
| Loop | Cyclic measurement range | 1-999 times |
| Single cycle step number | 100 | |
| Voltage and Current Detection Sampling | Four-wire sampling | |
| Data Base | Using SQL database to manage test data | |
| Upper computer communication mode | Based on TCP/IP Protocol/Serial Port | |
| Data Output Mode | EXCEL/TXT/Chart | |
| Communication Interface | Mesh port | |
| Chassis dimensions | 300x450x170mm | |
| Cabinet size | 900x600x1900mm | |
| Spatial Dimension of Discharge Battery | 900x600x130mm | |
