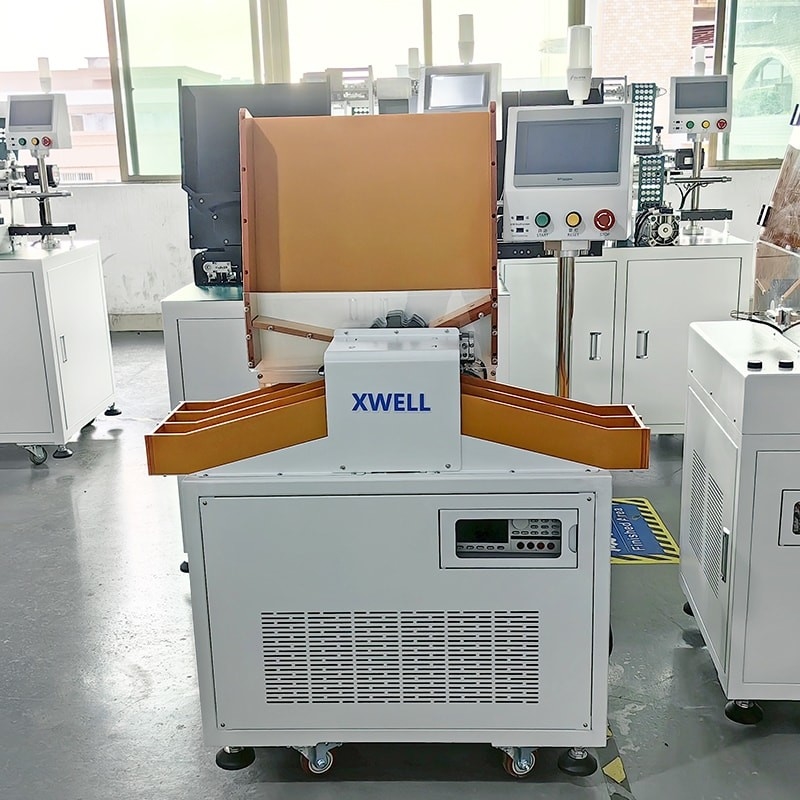

Automatic 5 Channel Lithium Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Test Parameter: | AC Internal Resistance, DC Voltage | Channel: | 5 |
|---|---|---|---|
| Internal Resistance Tester: | HK3561 Or HIOKI3561 | After Warranty Service: | Online Support |
| Battery Types: | 18650(other Sizes Available) | Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. |
| Test Parameters: | AC Internal Resistance, DC Voltage | Sorting Speed: | 80ppm |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | Ion Battery IR Voltage Sorting Equipment,Lithium Battery IR Voltage Sorting Equipment |
||
Product Description
Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter
Features
1. Products with high precision internal resistance,Voltage,automatic test system.
2. The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4. Hopper put in 500 pcs High production efficiency easy to operate.
5. Stick Barley paper 4200pcs/Hour high stability.
6. Can be docked with automatic veneer cushion machine,Saving labor.
Customization
1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.
2. The battery sorter can equip with a computer which can record the data of battery sortting.
3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.
4. Besides battery sorter, Tmax also provide a whole line machine for battery pack assembly.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
