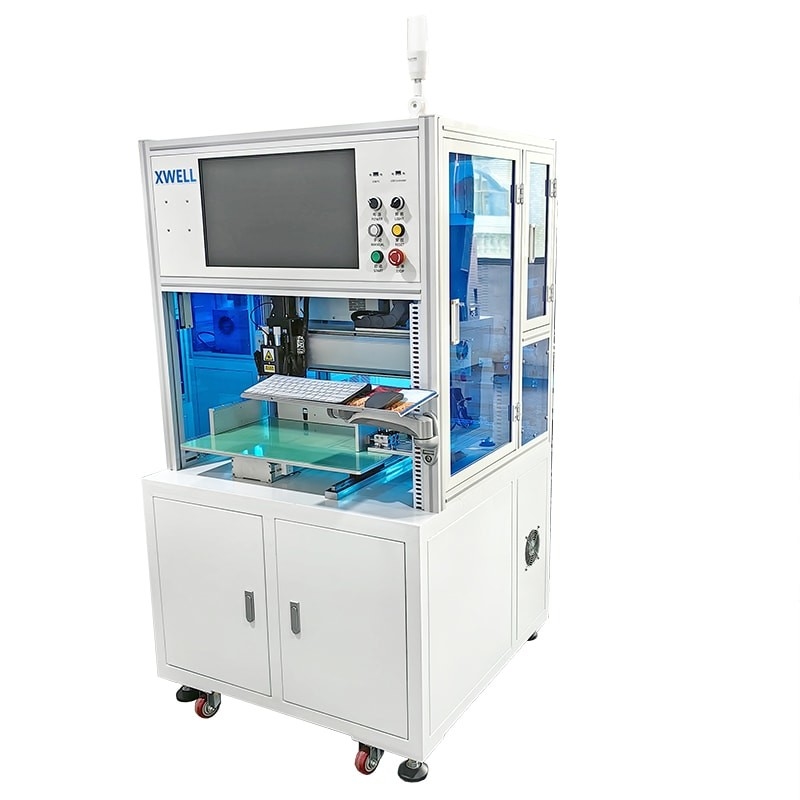

18650/21700/32650 Battery Spot Welding Machine Without Rotation Function
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Machinery Test Report: | Provided | Core Components: | PLC |
|---|---|---|---|
| X-axis Travel: | 400 Mm | Y-axis Travel: | 400 Mm |
| Welding Current: | 5000A 8000A | Operating System: | Windows And Software |
| Transmission Mode: | Screw Rod+precision Linear Guide Rail | Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h |
| Welding Head Spring Pressure Range: | 1.0 - 5kg | Voltage: | 220V And 380V |
| Highlight: | 21700 Battery Spot Welding Machine,Battery Spot Welding Machine Without Rotation |
||
Product Description
Automatic Single One Side Lithium Ion Battery 18650/21700/32650 Battery Spot Welding Machine Without Rotation Function
Single Side Spot Welding Machine Application
MD-ASW power battery spot welding machine adopts XY axis full servo drive, ball screw transmission
Move to ensure the accuracy of solder joints. It can be equipped with MIYACHI series spot welding power supply to ensure the reliability of welding.
TWSL power battery spot welding machine comes with circulating water welding head cooling system to improve welding
The effect is extended to extend the life of the soldering pin.
Single Side Spot Welding Machine Features
1. Scope of adaptation: Adaptation range: 18650, 26650, 32650, series and parallel combination of square batteries (or
similar), to achieve automated single-sided spot welding
2. Suitable for nickel sheet width; no limit
3. Suitable for nickel sheet thickness; 0.1MM---0.2MM (0.1-0.2MM thickness nickel sheet needs to be grooved)
4. Production efficiency: 1800-2000/hour or more with 18650 batteries
5. Standard spot welding host: MB-30 main welder, or the customer's own.
6. Welder effect: welding consistency is very good, solder joints are uniform, beautiful, tensile force is greater than 12KG
Single Side Spot Welding Machine Advantages
1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
