Automatic Rotary Electrode Single Side Spot Welding Machine For Electric Bike 18650 E - Vehicles Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Key Selling Points: | Easy To Operate | Usage: | Spot Welding |
|---|---|---|---|
| X-axis Travel: | 400 Mm | Y-axis Travel: | 400 Mm |
| Welding Current: | 5000A 8000A | Operating System: | Windows And Software |
| Transmission Mode: | Screw Rod+precision Linear Guide Rail | Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h |
| Welding Head Spring Pressure Range: | 1.0 - 5kg | Voltage: | 220V And 380V |
| Highlight: | Electrode Single Side Spot Welding Machine,Automatic Rotary Side Spot Welding Machine |
||
Product Description

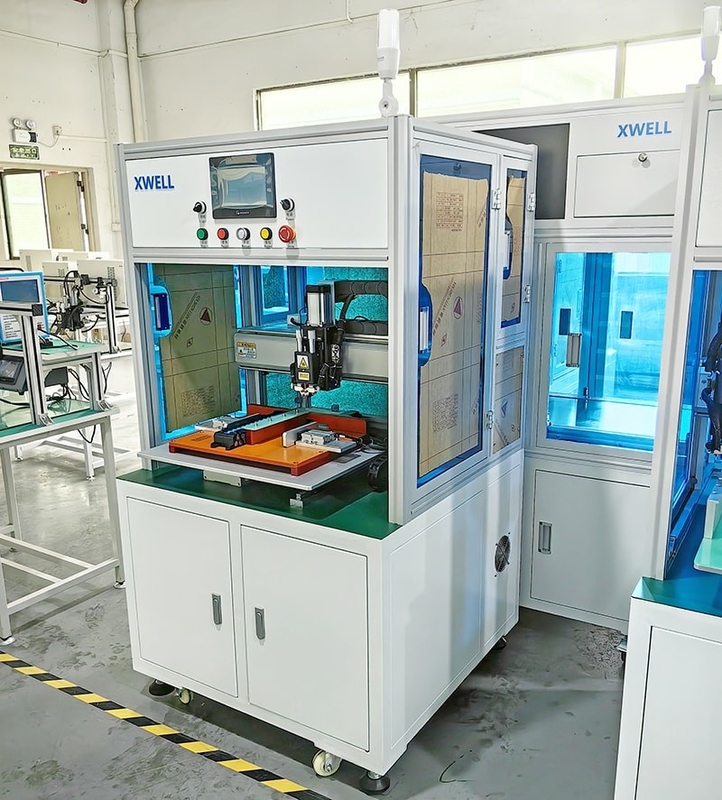

Automatic Rotary Welding Electrode Single Side Spot Welding Machine For Electric Bike 18650 Battery/E-Vehicles Battery
Single Side Spot Welding Machine Application
It is mainly suitable for 18650 26650 32650 cylindrical battery. The max 99 sets of programming data can be stored for simplify the exchange operation. It is universal machine which can by used for all kind of cylindrical batteries production just to changing the welding fixture only. Machine associated with X/Y axis full servo driving, ball screw drive system to ensure spot welding accuracy.
Single Side Spot Welding Machine Features
>Machines which automatically Weld Nickel Sheet to Battery Cell Electrode.
2> Used for battery factories automatical production in power banks, laptops and ebikes, etc.
3> Do 1800pcs welding per hour.
4> Touch screen operation, easy and fast responding.
5> 0-1 worker to operate the machine, fast and with great efficiency.
Can be connected to other machines to proceed automatically.
6> Air cooling, manual programming & CAD drawing input available.
7> Overseas sales office in New Delhi, India.
8> 12 months warranty and life-time maintenance.
Single Side Spot Welding Machine Advantages
1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
