Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding Machine Single Side Welding Machine For 18650 Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Key Selling Points: | Single Side Welding,Automatic,Fast Welding Speed |
|---|---|---|---|
| X-axis Travel: | 400 Mm | Y-axis Travel: | 400 Mm |
| Welding Current: | 5000A 8000A | Operating System: | Windows And Software |
| Transmission Mode: | Screw Rod+precision Linear Guide Rail | Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h |
| Welding Head Spring Pressure Range: | 1.0 - 5kg | Voltage: | 220V And 380V |
| Highlight: | 18650 Cell Battery Pack Spot Welder,Automatic Battery Pack Spot Welder |
||
Product Description

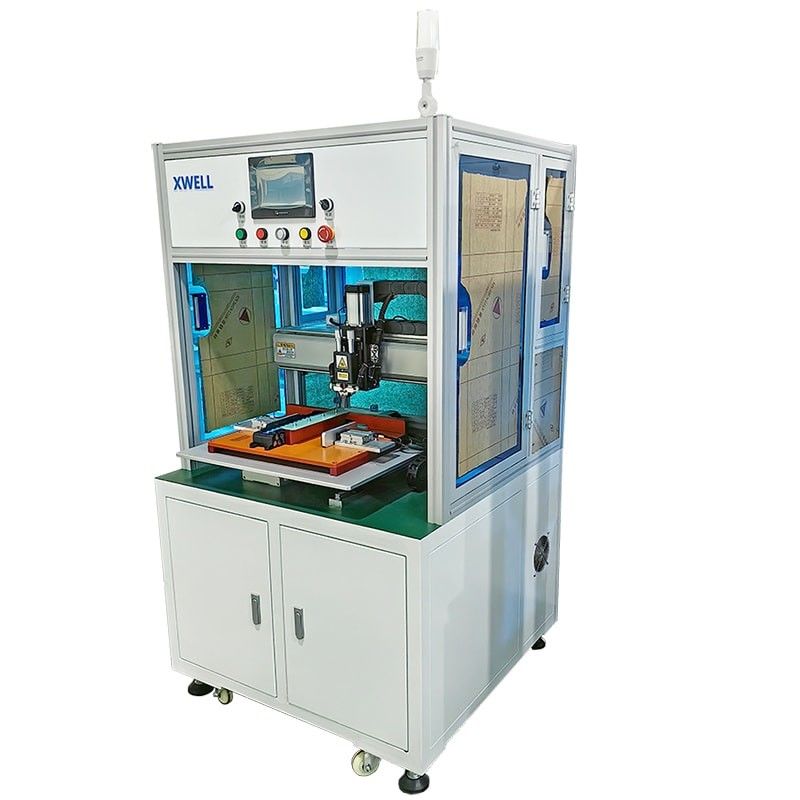

Battery Pack Spot Welder Automatic Li Ion Battery Spot Welding Machine Single Side Welding Machine For 18650 Cell
Single Side Spot Welding Machine Application
single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Single Side Spot Welding Machine Advantages
The electrical control part of the spot welding machine adopts modular design, with high integration, good versatility and easy maintenance; it mainly performs the traveling mechanism is controlled by servo motor, which has high precision and good reliability; the electrical circuit of the equipment adopts domestic and foreign standards.Control components and devices are easy to maintain and replace. Supports Autocad data import, array and manual methods, which significantly improves spot welding efficiency and ensures the standardization and reliability of spot welding station production in the Pack assembly line.
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
