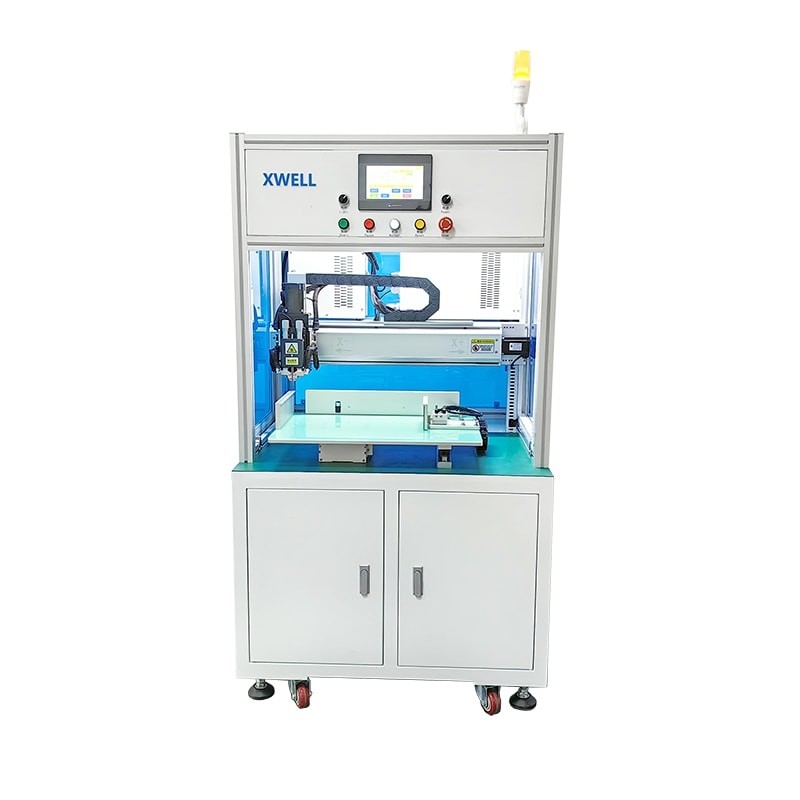

Automatic Single Sided Spot Welding Machine 18650 Lithium Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Key Selling Points: | Automatic |
|---|---|---|---|
| Usage: | Spot Welding | Welding Size: | 400*400mm And Customizable |
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V And 380V |
| Highlight: | Automatic Single Sided Spot Welding Machine,18650 Single Sided Spot Welding Machine |
||
Product Description
Automatic Single Side Spot Welding Machine 18650 Lithium Battery Pack
Battery Spot Welding Machine Description
It is mainly suitable for 18650 26650 32650 cylindrical battery. The max 99 sets of programming data can be stored for simplify the exchange operation. It is universal machine which can by used for all kind of cylindrical batteries production just to changing the welding fixture only. Machine associated with X/Y axis full servo driving, ball screw drive system to ensure spot welding accuracy.
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
