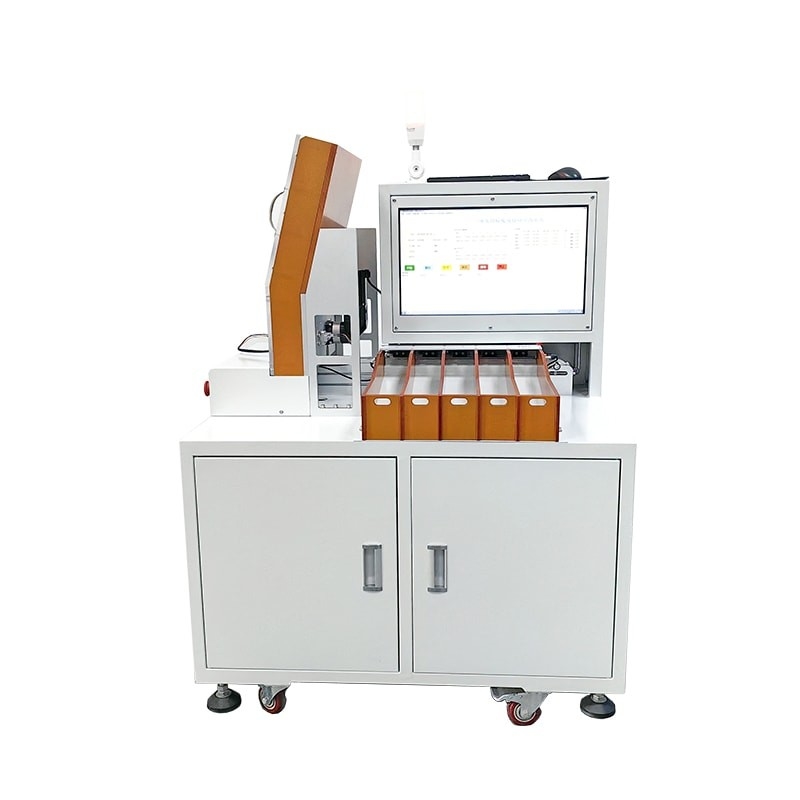

Portable Battery Cell Sorting Machine Automatic 5 Channel Cylindrical Power Cells Sorter Selector
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | Auto Sorting Machine | Warranty: | 1 Year |
|---|---|---|---|
| Receiving Channel: | 5 Channels | Place Of Origin: | Guangdong, China |
| Model No.: | MD-BS11 | Voltage Supply: | Single-phase ~220V±10%/50Hz±10%, Power <800W |
| Battery Types: | 18650(other Sizes Available) | Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. |
| Test Parameters: | AC Internal Resistance, DC Voltage | Sorting Speed: | 80ppm |
| Highlight: | Portable Battery Cell Sorting Machine,Cylindrical Battery Cell Sorting Machine |
||
Product Description
Automatic 5 Channel Cylindrical Power Cells Sorter Selector Sorting Machine
The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.
1.Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
2.Touch screen operation, easy and fast responding.
3.Automatically sort the voltage and internal resistance of cylindrical batteries.
4.The process detection signal is comprehensive and diverse.
Application
Electric vehicle battery pack
Street lamp battery pack
Automotive Resistance Module
Battery pack of balancing car
Portable source
Laptop battery pack
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
