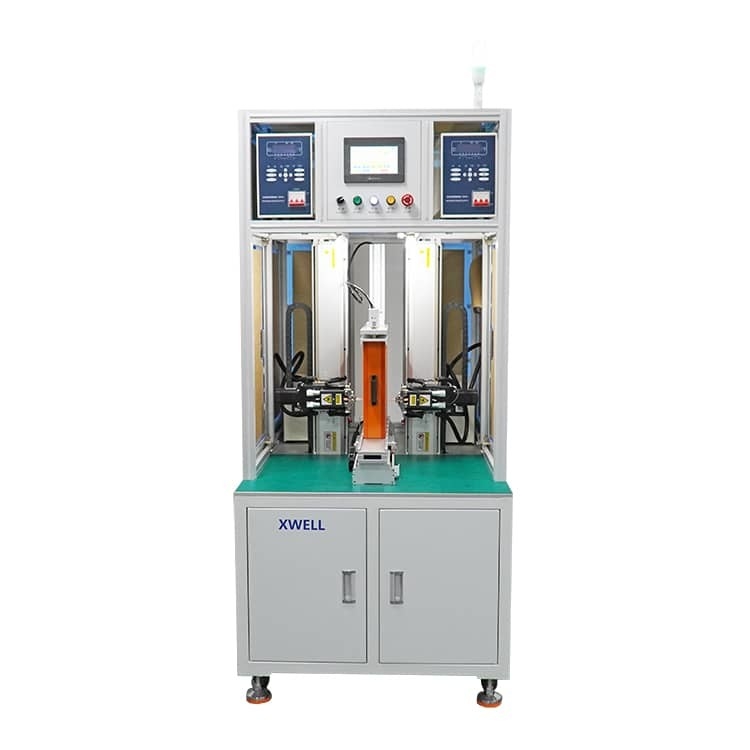

Electric Double Side Cell Welder 18650 Battery Spot Welding Machine Full Automatic
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Core Components: | Transformer |
|---|---|---|---|
| Key Selling Points: | Automatic | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Electric Double Side Cell Welder,Full Automatic Double Side Cell Welder |
||
Product Description
Full Automatic Electric High Speed Double-Side Cell Welder 18650 Battery Spot Welding Machine For Batteries Pack
Product Description
The MD-ADW Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Application
With the corresponding fixture, MD-ASW can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

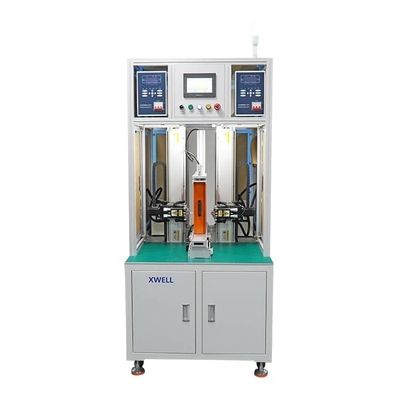

Double Side Spot Welding Machine Details
