Prismatic Battery Cell Sorter Separator Resistance Grading Machine For Lithium Ion Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Marketing Type: | Hot Product 2023 | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Input Voltage: | AC220V/50Hz | Speed: | 600 Pcs/h |
| Test Parameter: | AC Internal Resistance, Open DC Voltage | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Prismatic Battery Cell Sorter Separator,Lithium Ion Battery Cell Sorter Separator |
||
Product Description
Automatic Prismatic Battery Cell Sorter Separator Resistance Grading Machine For Lithium Ion Battery Pack
Automatic Battery Sorting Machine:
1.Compact and reasonable equipment structure, beautifulappearance, small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolledsheet metal, aluminum frame.
5. The device is equipped with universal movable casters,the device can easily move when it is displaced.
Description of equipment technical parameters:
*Power supply: 220V, 0.5KW.
*Air source: 0.5 ～ 0.6 Mpa (dry air).
*Separation efficiency: ≥ 10PPM.
*Product qualification rate: ≥ 99%.
*Standby rate: ≥ 95%.
*Qualified rate of sorting: ≥ 98%.
*Sorting accuracy: 99.9%.
*Secondary test: edge gear voltage deviation ± 0.1mV, internal resistance deviation ± 0.05m Ω.
*Sorting parameters: open circuit voltage, AC internal resistance.
*Instrument: precision voltage internal resistance tester.
*Equipment weight: ≥ 300KG.
*Overall dimension: 1600 (long) × 1600 wide × 1700 (H) mm.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

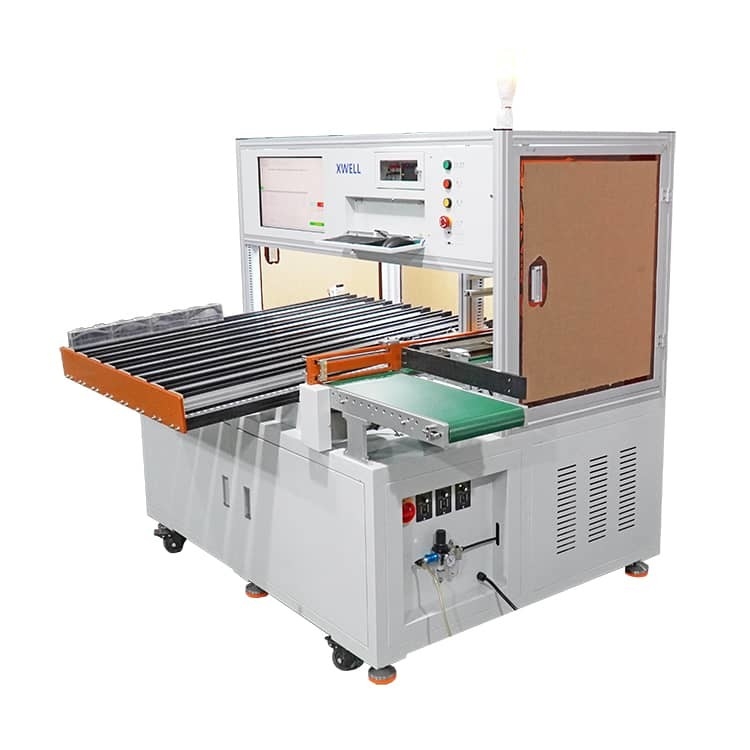

Prismatic Battery Cell Sorting Machine Details
