4000W Automatic Spot Welder Machine 18650 Battery Pack Double - Side Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Usage: | 18650 Battery Pack Welding | Related Industry: | Lithium Ion Battery |
|---|---|---|---|
| Key Selling Points: | Automatic | Welding Current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) | Power: | 4000 W |
| Highlight: | 4000W Automatic Spot Welder Machine,Double Side Automatic Spot Welder Machine,18650 Battery Pack Welding Machine |
||
Product Description
Automatic Spot Welder Machine 18650 Battery Pack Double-Side Welding
Description:
1.1 Power:6.2KW,AC 380V,50HZ
1.2 Air pressure; 0.4-0.8Mpa
1.3 Applied range: Series and parallel combination of power battery core 18650/26650, multi-parallel and multi-series combination, electric tool battery, swing car battery, storage battery pack, 26650 battery pack, 32650 battery pack, electric bicycle battery, etc.
1.4 Max stoke: example the 18650 battery core, max stroke: X-axis 35pcs core* Y-axis 20pcs core, if need a larger stroke, it needs to be customized.
1.5 Suitable welding needle: Diameter 4-4*6 imported flat head welding needle (bulge point welding), diameter 1.7*100mm(spot welding)
1.6 Suitable nickel width: Forming nickel
Product characteristics:
1. spot welding machine uses aluminum alloy and sheet metal structure, firm frame and frame, not easy to loose, and ensure stability during spot welding.
2. Suitable for automatic spot welding of large cylinder battery, which can be customized for multi-parallel and
multi-series.
3. The spot welding effect is stable, efficient and accurate welding point.
4. Automatic spot welding and high welding efficiency, including 4600-5000PCS core per hour
5. Spot welding mold has an anti-dark structure, ordinary personnel can debug equipment and operating
equipment,simple operation.
6. The equipment can store 200 sets of spot welding parameters, and it can quickly switch the spot welding
mode.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

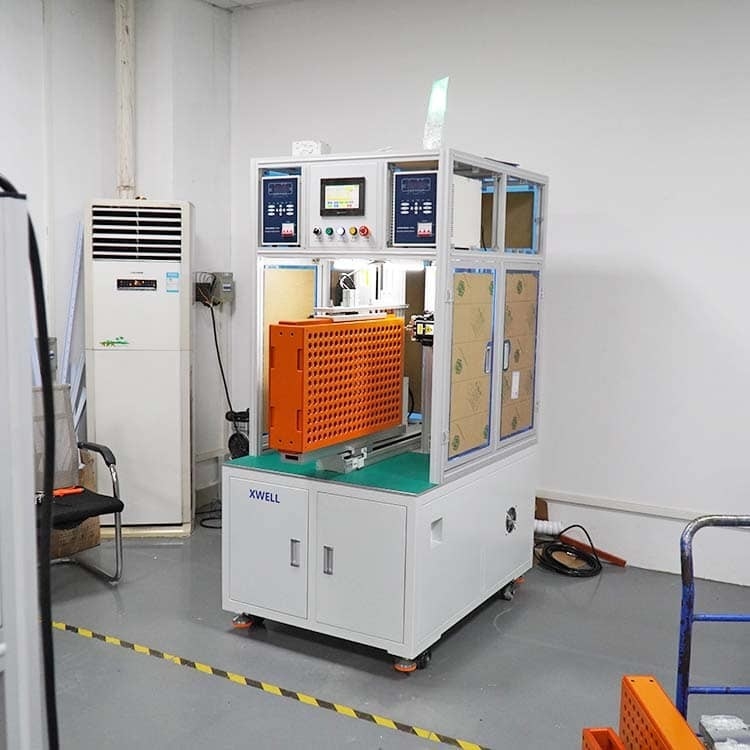

Double Side Spot Welding Machine Details
