Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Automation Equipment | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Key Selling Points: | Automatic | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 22650 Battery Pack Spot Welding Machine,18650 Battery Pack Spot Welding Machine |
||
Product Description
Battery Pack Double Sides Spot Welding Machine 18650 22650 Welder Battery
Description:
Power Battery 18650 / 26650 series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, 18650 Battery Group, 26650 Battery Group, 32650 Battery Group, Electric Bicycle Battery, solar Street light, Ternary Lithium Ion battery, digital lithium ion battery, lithium iron phosphate battery, etc. .
Advantage:
1. The equipment is made of aluminum alloy and sheet metal structure, which is firm and not easy to loosen, and ensures stability.
2. It is suitable for large-scale automatic spot welding of batteries.
3. The spot welding effect is stable and guaranteed.
4. high welding efficiency, take 18650 as an example: about 4600-5000PCS power core / Hour
5. spot welding die has anti-dull configuration, ordinary staff can debug equipment and operating equipment.
6. equipment with 200 sets of spot welding parameters storage, can quickly switch spot welding model.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

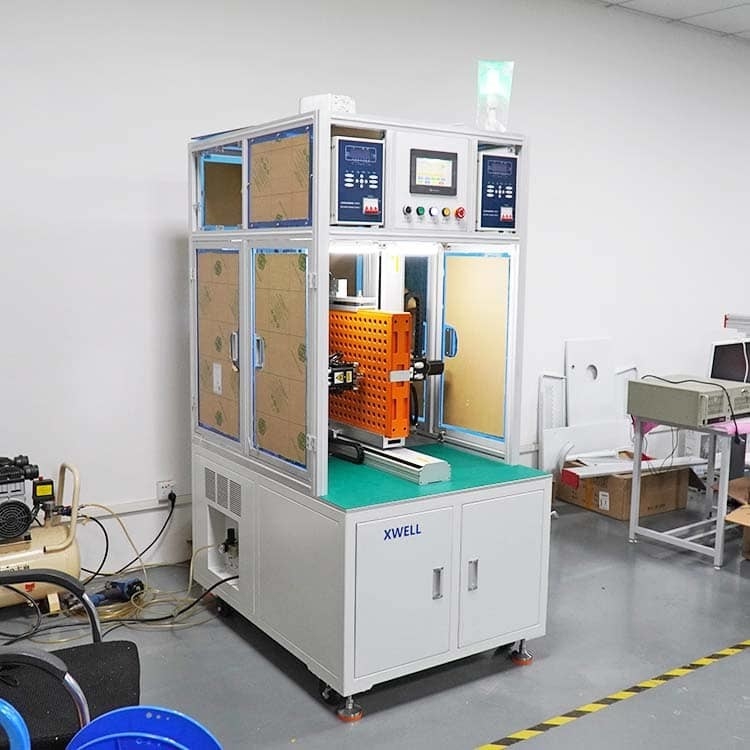

Double Side Spot Welding Machine Details
