26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Machinery Test Report: | Provided |
|---|---|---|---|
| Warranty: | 1 Year | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 26650 Battery Spot Welding Welder Machine,Cell Pack Spot Welding Welder Machine |
||
Product Description
Double Side 18650 26650 Battery Spot Welding Welder Machine For Battery Cell Pack Packing Assemble Line
Description:
Designed for 18650, 26650... battery pack welding,like E-bike,scooter,and electro mobile battery pack welding. 5000A invert spot welding power supply. high quanlity welding effect. Servo motor driving.fast, stable welding.
Features:
1. The automatic welding current monitoring system can monitor the welding current in real-time;
2. Suitable for large-scale automated spot welding and assembly line matching of battery packs;
3. High welding efficiency, taking 18650 as an example: about 2500-3000PCS of cells/hour:
4. Simple programming, with anti fooling configuration, easy for ordinary employees to operate the equipment.
5. Easy to adjust and use, with independently adjustable welding needle spacing and pressure
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

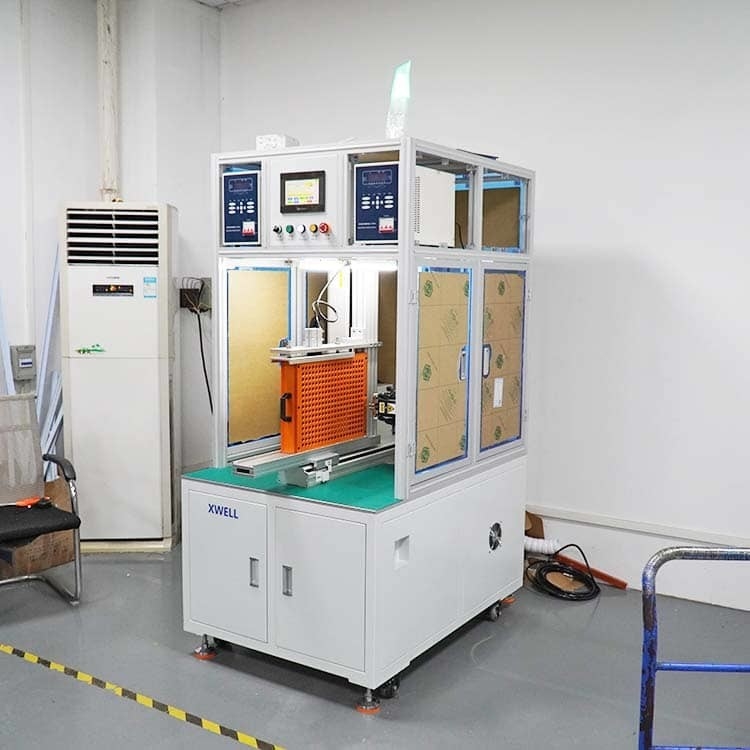

Double Side Spot Welding Machine Details
