EV Cell Tab Welder CNC Spot Welding Machine Automatic Numerical Control For 18650 Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Automatic Battery Welding Machine | Marketing Type: | Hot Product |
|---|---|---|---|
| Condition: | New | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | EV Cell CNC Spot Welding Machine,Automatic Numerical CNC Spot Welding Machine |
||
Product Description
Automatic Numerical Control EV Cell Double Sides Battery Tab Welder CNC Spot Welding Machine For 18650 Battery Pack
Application area:
With the corresponding fixture, machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Operation:
- Setting the parameters of welding on the touch screen. (The same product only need to be set once)
- Put the fixture with the battery pack on the quick clamping position.
- Press the start button, machine automatically complete all welding actions.
- machine sound to prompt operator replacement of new fixture (battery pack).
Features:
- Support breakpoint start, automatic start, and manual start.
- Cold solder joint and sealing off alarm.
- Easy program, support matrix, array and point program, can store 99 group parameters.
Welding needle abrasion alarm. - Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

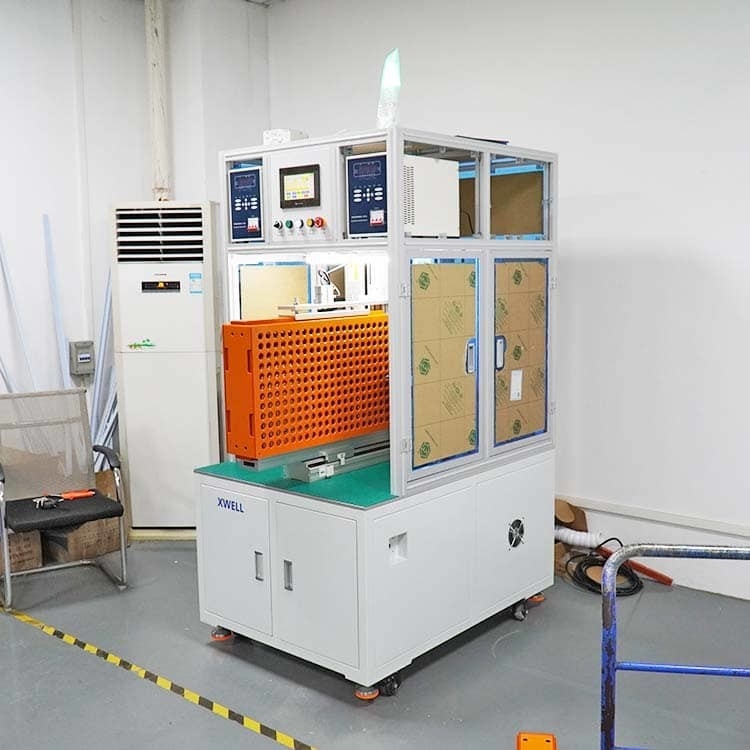

Double Side Spot Welding Machine Details
