380V Auto Spot Welder 14500 21700 26670 32700 Lithium Battery Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Warranty: | 1 Year | Usage: | Battery Pack Welding |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | 32700 Lithium Battery Auto Spot Welder,21700 Lithium Battery Auto Spot Welder,14500 Lithium Battery Spot Welding Machine |
||
Product Description

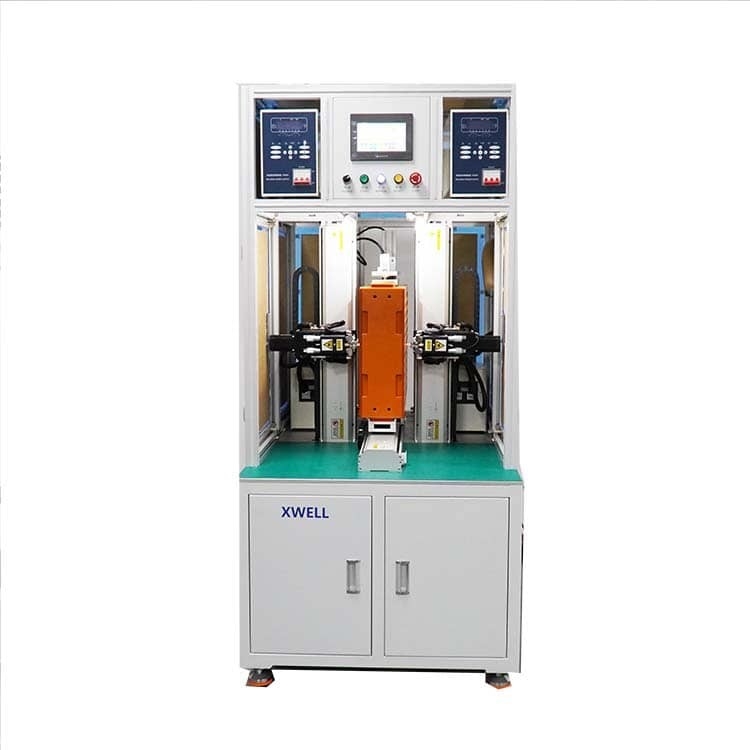

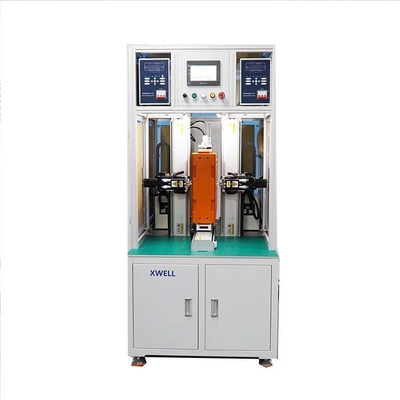

18650 21700 Cylindrical Cell Pack Double Side Automatic Battery Pack Spot Welding Machine
Description:
High precision double-sided automatic spot welding machine is a specialized equipment in the electrical industry for welding large scale 18650 or 26650 battery packs with nickel plates, tweezers, and other positive and negative electrode connecting pieces. It is used for spot welding processes of battery combinations such as electric vehicles, mobile power supplies, and power tools. Adopting high-precision servo robotic arms to achieve high-speed spot welding, precise positioning, higher spot welding quality, saving operators, and greatly reducing labor costs. Manual loading is all that is required, and automatic spot welding can be carried out with simple settings. According to the actual situation, one person can manage multiple machines simultaneously.
Features:
5.Electromagnet device , battery pack detector, cylinder compression device , and service control system , etc , are installed to ensure battery pack is placed in right position and increase the welding accuracy.
6.A speedy 90-degree rotatable chuck is installed to move the battery pack with inconsisten direction welding spot The operating handles , CAD maps , multiple array calculations , portable driver insert port , partial area control , switchable screen Z-axis forward & backward movement , break-point virtual Swelding , battery pack detection & go features make the machine more user-friendly
7.Complete function , fit for mass welding production .
8.The pressing shaft is driven by a motor and a screw rod , which makes the replacement of products more convenient and the operation more user-friendly.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
