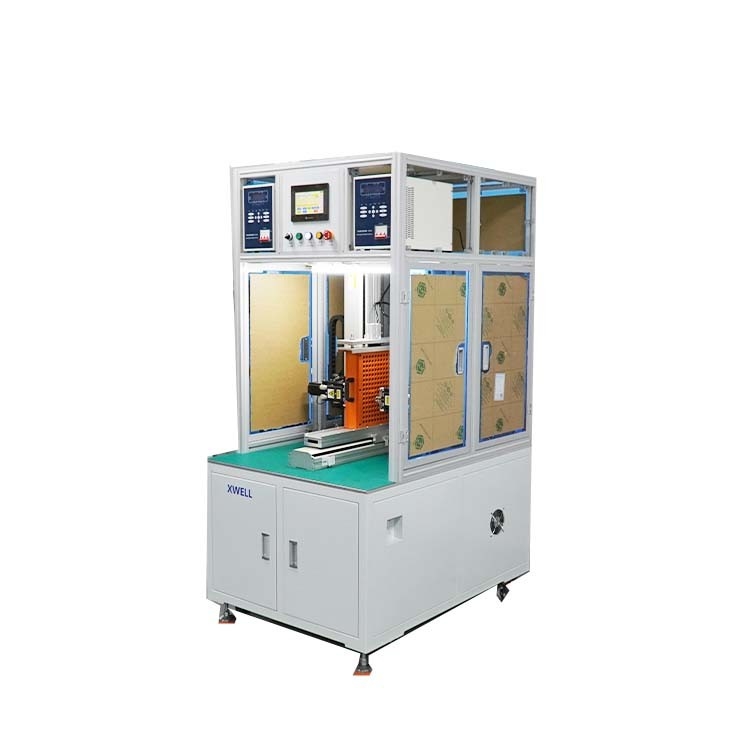

Double Sides Ev Battery Tab Welder Cnc Spot Welding Machine For 18650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | Engine | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Key Selling Points: | Automatic | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Double Sides Ev Battery Tab Welder,18650 Ev Battery Tab Welder |
||
Product Description
Ev Cell Double Sides Battery Tab Welder Cnc Spot Welding Machine For 18650
Product Specification:
1. The welding voltage locking technology prevents the network voltage fluctuation from affecting the welding current
2. Adjustable welding pulse width, small welding spatter, welds color no changing.
3. Two sections current monitoring and comparing function, abnormal current sound and light alarm, effectively preventing the rosin joint.
4. Fault self-diagnosis function, display the corresponding fault points,convenient maintenance.
Automatic Battery Spot Welding Options:
XWELL Offers automated welding systems that can help you to get the production that you need, with speed and quality in mind. With solutions in nickel tabs, Hualianneng has a solution to help you automate your battery production. With the ability to custom program for multiple packs, these systems are ideal for anyone welding cylindrical battery cells.
Battery Spot Welding Machine Specification
| Model No. | MD-AW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
