Automatic 8 Channel Prismatic Battery Cell Sorting Machine PLC Controlled
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Function: | Sorting | Input Voltage: | AC220V/50Hz |
| Power: | <1000W | Efficiency: | 600 Pcs/h |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Battery Cell Sorting Machine PLC Controlled,Battery Cell Sorting Machine 8 Channel |
||
Product Description
Automatic 8 channel Prismatic Battery Cell Testing and Sorting Machine For Cell
Functional description:
The ten channel prismatic battery sorting machine is an automatic sorting device suitable for square shell batteries. This device is compatible with multiple cell sorting options. The device achieves internal pressure and resistance testing of square shell cells through an internal resistance tester. The parameters of each cell are tested according to the upper computer software settings, and different levels of batteries are moved to different channels according to the judgment results, thus achieving automatic sorting of battery products (the device has a scanning data storage function). The equipment is composed of a feeding mechanism, a code scanning mechanism, a testing mechanism, an automatic sorting mechanism, etc. According to user requirements, the upper computer software is designed and developed. According to the group information, the battery cells are automatically sorted and collected into their corresponding feeders. The operation is simple, the sorting is accurate, and the efficiency is high.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is
responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving
manpower, good product performance.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

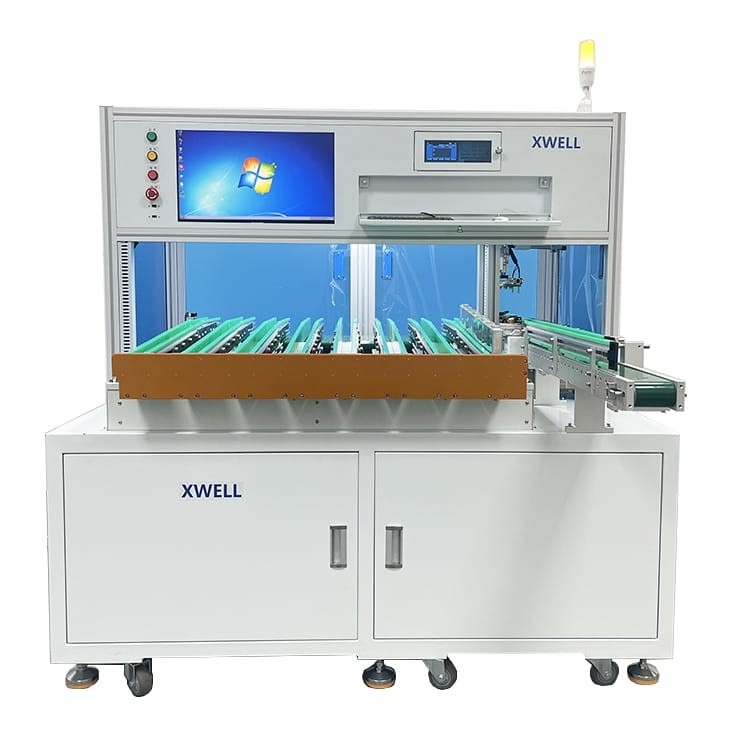

Prismatic Battery Cell Sorting Machine Details
