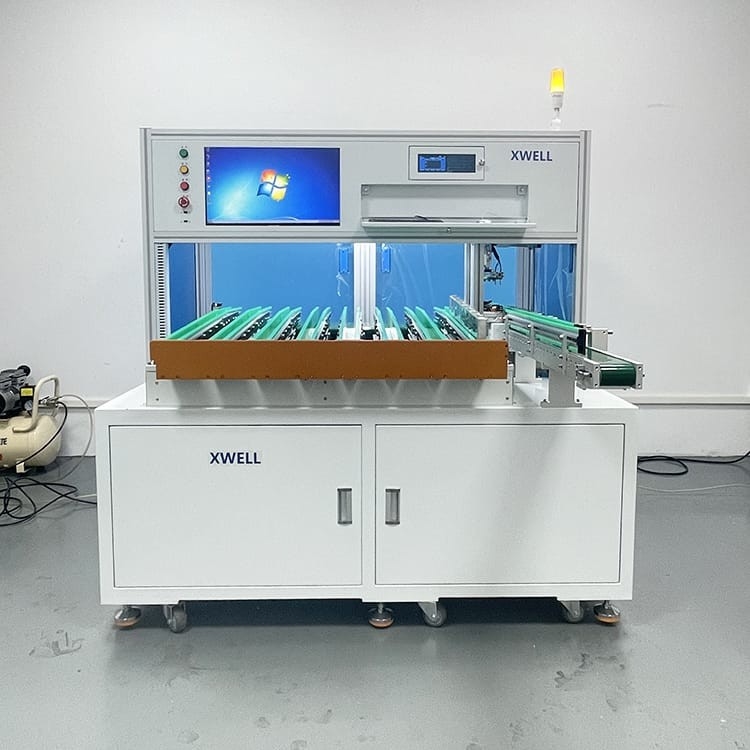

Ordinary AC220V 8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Marketing Type: | Ordinary Product |
|---|---|---|---|
| Machinery Function: | Sorting | Input Voltage: | AC220V/50Hz |
| Power: | <1000W | Efficiency: | 600 Pcs/h |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Battery Cell Sorting Machine AC220V,Ordinary Prasmatic Battery Cell Sorting Machine |
||
Product Description
8 Channel Prasmatic Battery Cell Sorting Machine Battery Sorter
Battery Sorting machine Description
and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation.
The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous,
the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting
equipment in the market.
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
3. Sort by cell's voltage and impedance up to 8 groups.
4. Automatic sorting control.
5. Fast sorting speed
6. Easy to refill cells during the process.
7. Wheels design, easy to move the machine to any operating place.
Prismatic Battery Cell Sorting Machine Advantages
1. Square 50 * 160 * 118, 36 * 130 * 200, 30 * 130 * 200 batteries;
2. The positive and negative electrodes are clean and free of dirt.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
Prismatic Battery Cell Sorting Machine Details
