Prismatic Cell Sorting Machine Precision Voltage Internal Resistance Measuring Instrument
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BPS08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Application Fields: | Battery | Warranty: | 1 Year |
|---|---|---|---|
| Machinery Function: | Sorting | Input Voltage: | AC220V/50Hz |
| Power: | <1000W | Efficiency: | 600 Pcs/h |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Prismatic Cell Sorting Machine,Precision Cell Sorting Machine,Voltage Internal Resistance Cell Sorting Machine |
||
Product Description
8 Channel Battery Precision Voltage Internal Resistance Measuring Instrument Prismatic Cell Sorting Machine
Prismatic Battery Cell Sorting Machine Characteristics
*The equipment includes brand computer, software system, precision voltage internal resistance measuring instrument, code scanning mechanism, batch loading device, automatic grading of manipulator, automatic blanking and other devices.
*According to the AC internal resistance, open circuit voltage and other parameters of lithium batteries, the batteries are accurately graded and grouped according to various performance parameters. The maximum number of graded pairs at one time is 8, which improves the consistency of pack battery quality and paired cell performance.
*AC internal resistance and open circuit voltage can be collected automatically by using the built-in high-precision internal resistance meter BT3562A. The sorting process is automatically controlled. It is simple to operate, and manual participation is abandoned. This ensures the accuracy of test parameters and the reliability of the pairing process, and improves and guarantees the performance and quality of pack products.
Applicable battery specifications and incoming material requirements
1. Specially designed for prismatic batteries, suitable for different battery size
2. Total of 8 channels, 7 sorting channels, 1 NG channel, channel is customizable
3. With high-precision tester, voltage and internal resistance test has high precision.
4. The voltage and internal resistance range of each channel can be programmed independently
5. The sorting process is automatically controlled, easy to operate, and manual participation is eliminated, which ensures the accuracy of test parameters and the reliability of the matching process, and improves and guarantees the performance and quality of pack products.
Prismatic Battery Cell Sorting Machine Advantages
1. Square 50 * 160 * 118, 36 * 130 * 200, 30 * 130 * 200 batteries;
2. The positive and negative electrodes are clean and free of dirt.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |

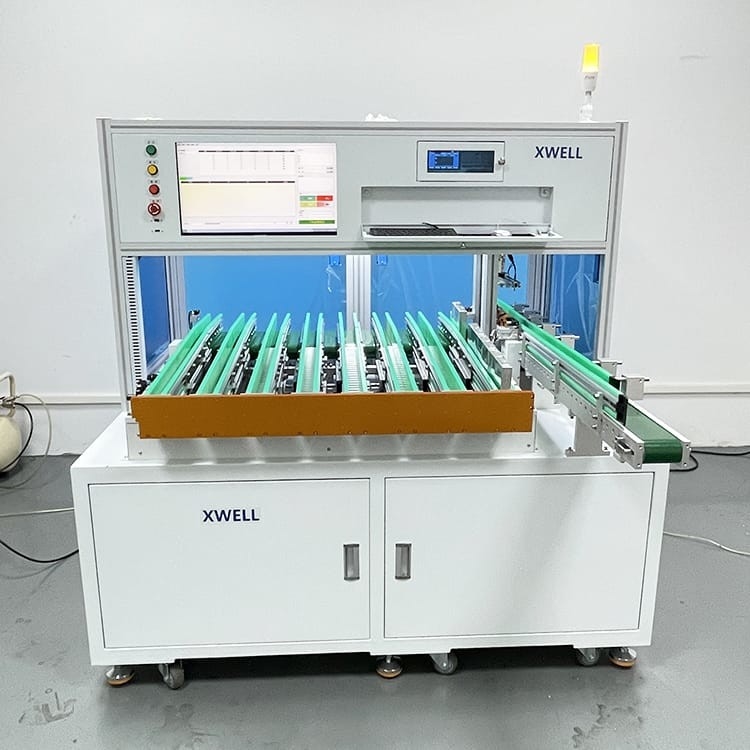

Prismatic Battery Cell Sorting Machine Details
