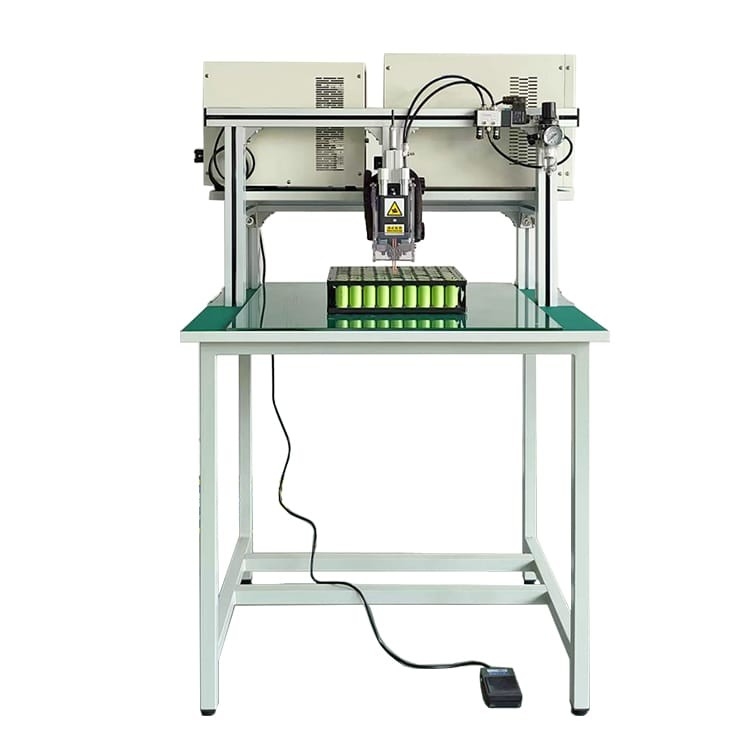

Gantry Pneumatic Manual Lithium Cylindrical Battery Spot Welding Machine 18650 21700
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-MND5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 1500-5000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Core Components: | Motor | Place Of Origin: | China |
|---|---|---|---|
| Driving Mode: | Pneumatic | Z Axis Travel: | 50 Mm |
| Suitable Cell: | Cylindrical Cell, 18650,26650, 32650... | Battery Number: | 500-600 Cells |
| Welding Power Supply: | 5000A DC Inverter Welding Machine Power Supply | Max Welding Current: | 5000A |
| Voltage Input: | 220V And 380V | Power: | 4 KW |
| Highlight: | 4kW Battery Spot Welding Machine,Manual Battery Spot Welding Machine,380V Cell Spot Welder |
||
Product Description
Gantry Type Pneumatic Manual Battery Spot Welding Machine 18650 21700 Cell Spot Welder for Lithium Cylindrical Battery
It is applicable to cylindrical cell modules with a height of 70mm and below, such as 18650, 18500, 21700, 26650,1 4500, especially lithium battery modules such as NB / Power Tool / Gardening Tool / High Power / Energy Storage Power Station / Electric Balance Vehicle / Electric Motorcycle / Electric Vehicle, which can be used together with automatic production lines.
Characteristics and Advantages
It is mainly used for processing and spot welding of power management battery, energy storage lithium battery and new energy battery pack. It has the characteristics and advantages of strong flexibility, proofing for customers, small batch production and maintenance of lithium battery pack. It is also one of the advanced, efficient and reliable spot welding equipment in the market.
Application Field
Connection between photovoltaic, power battery pack, lithium nickel hydride battery and nickel sheet alloy sheet aluminum nickel composite belt, connection between wire and guide sheet, welding of household appliance parts and wires, connection of hardware accessories, copper silver products, stainless steel peripheral joints, bulb foot welding, electronic parts, welding of various high and low conductive metal alloys, etc.
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Table size | 800 * 600mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300 - 500 pcs |
| Welding speed | Max 0.35s/spot, 1000 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Controller | Microcomputer |
| Driver mode | Pneumatic |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 4000 W |
| Size | 800L * 600W * 1530Hmm |
| Weight | 100kg |
Product Sturcture
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
