Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Brand Name: | XWELL | Warranty: | 1 Year |
|---|---|---|---|
| Certification: | CE | Pack Size: | X Direction: 26; Y Direction: 26 |
| Welding Current: | 5000A 8000A | Voltage: | 220V/380V(AC) |
| Power: | 4000 W | ||
| Highlight: | Battery Pack Automatic Spot Welding Machine,Cylindrical Battery Automatic Spot Welding Machine,Nickel Strip Battery Pack Welding Machine |
||
Product Description
High Quality Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
Description:
The MD-ASW Single Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features :
1) Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like
E-bike, scooter, and electro mobile battery pack welding.
E-bike, scooter, and electro mobile battery pack welding.
2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
3) Servo motor driving, fast, stable welding.
4) Support breakpoint start, automatic start, and manual start.
5) Cold solder joint and sealing off alarm.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |

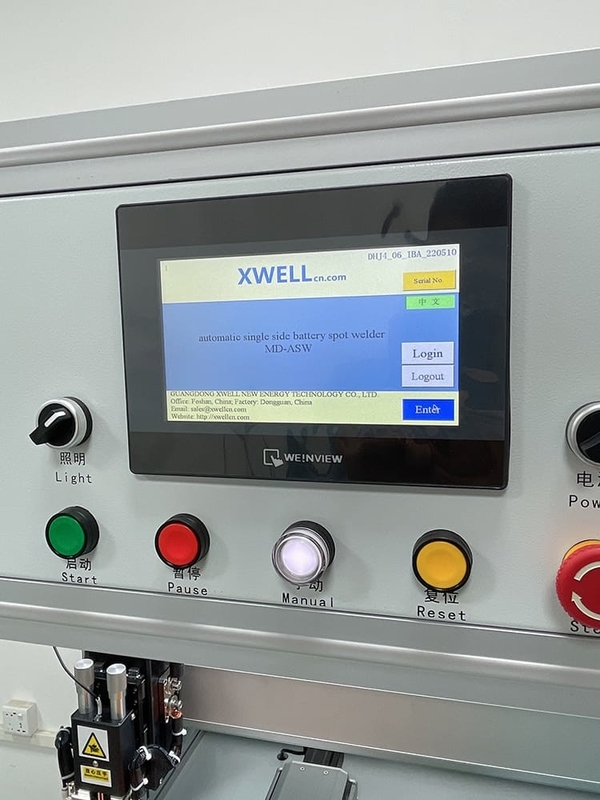

| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
