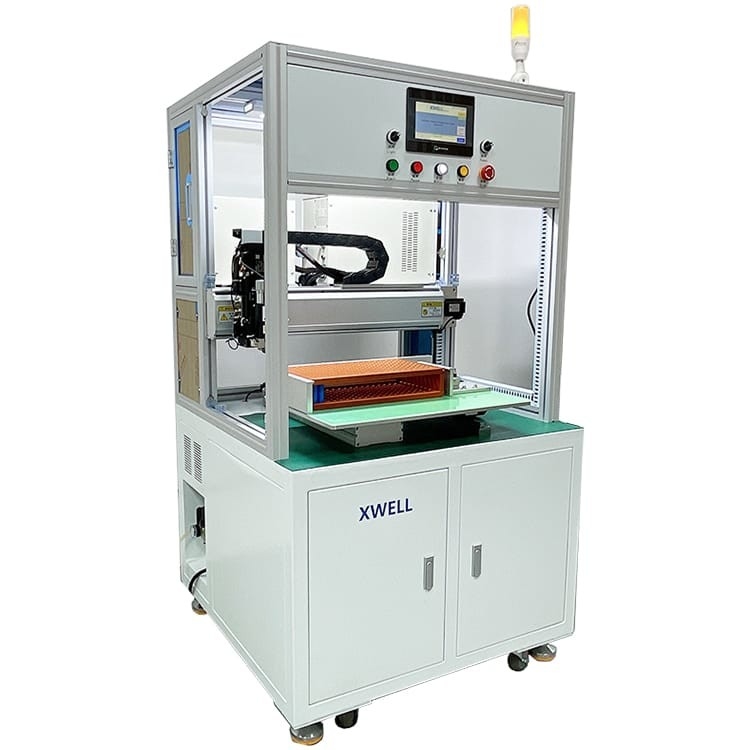

Automatic Electric Aluminum Spot Welding Machine Single Side For Cylindrical Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Modle Size: | MD-ASW | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Industries: | Battery Making | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | Cylindrical Battery Aluminum Spot Welding Machine,Cylindrical Battery Battery Pack Aluminum Spot Welding Machine |
||
Product Description
Lithium Ion Automatic Single Side Battery Pack Electric Aluminum Spot Welding Machine For Cylindrical Packs
Battery Spot Welding Machine Application
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.
Battery Spot Welding Machine Application Feacture
1) Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2) Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3) Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4) Easy to change from low current to high current, suitable for precision welding.
5) The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6) The welding current will rise with the power on time to ensure the welding effect.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
