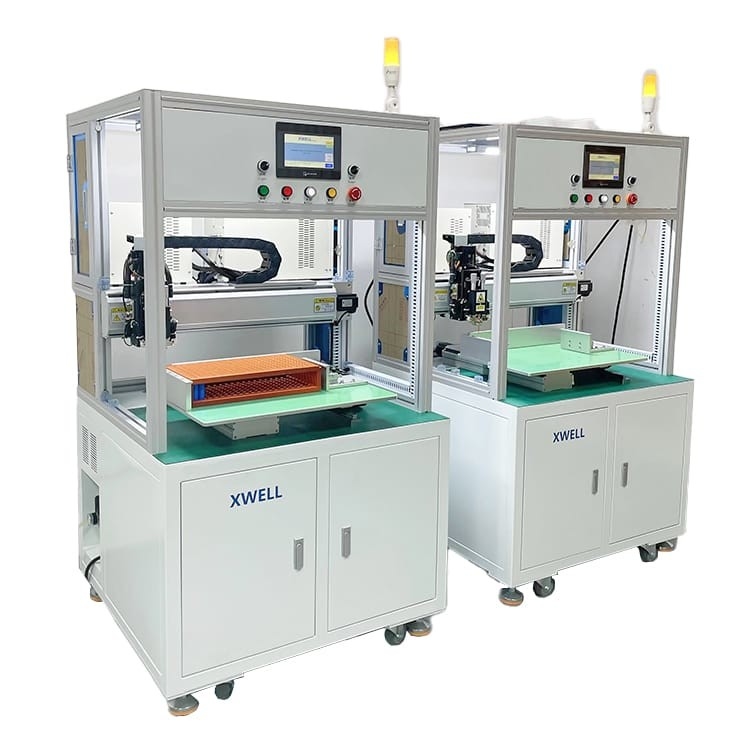

Automatic Single Side Spot Welder Pneumatic For Lithium Cylindrical Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Condition: | New | Key Selling Points: | Automatic |
|---|---|---|---|
| Warranty: | 1 Year | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | 8000A Battery Single Side Spot Welder,Lithium Battery Single Side Spot Welder |
||
Product Description
Automatic Single Side Spot Welding Machine Pneumatic Spot Welder For Lithium Cylindrical Battery Pack
Battery Spot Welding Machine Description
Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Battery Spot Welding Machine Features
1. Touch screen display, more convenient operation and clearer display.
2. Three file programming modes, including manual input, array and CAD pattern import, can easily and quickly deal with various complex program editing.
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the impact of the temperature of the spot welding needle on the welding quality.
4. It can store up to 99 groups of files, which is simple to call and does not need complex line change and machine adjustment process.
5. The spot welding procedure of side a and side B of the fixture can be switched.
Battery Spot Welding Machine Application
The Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
