Single Sided Cylindrical Cell Spot Welding Machine For Battery Pack DC Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | MD-ASW | Welding Size: | 400*400mm And Customizable |
|---|---|---|---|
| Weight Support: | 0-35KG | Pack Size: | X Direction: 26; Y Direction: 26 |
| Driving Mode: | Stepper Servo Motor | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | Cylindrical Cell Spot Welding Machine,DC Resistance Battery Pack Spot Welder,Single Sided Battery Pack Spot Welder |
||
Product Description
Single-Sided Power Cylindrical Cell Battery Pack DC Resistance Welding Spot Welding Machine
Battery Spot Welding Machine Description
The MD-ASW single-sided battery spot welding machine is a device used to weld together the various components of a battery cell. It uses a high-frequency electric current to join the different materials used in the cell, including the cathode, anode, separator, and current collector.
Battery Spot Welding Machine Features
1. Automatic welding, uniform solder joints, good consistency, improve the qualified rate
2. Real-time welding current monitoring, false welding or fire alarm and automatic shutdown
3. Manually adjust automatic area repair welding, single point repair welding
4. The operating mechanism adopts servo motors with linear modules for precise positioning
Battery Spot Welding Machine Application
1. Battery industry: battery caps, battery nickel sheets, battery tabs, battery lead-out pieces, button battery welding. It is used for welding of polar plates, negative pins and busbars of various batteries (Ni-MH, Ni-Cd, Li-ion batteries).
2. Automobile and motorcycle accessories, hardware industry: suitable for various terminals and wire harness welding, enameled wire welding, terminal and copper sheet, nickel sheet welding, automobile connection wire and other precision wire harness welding, micro-motor motor lead wire welding.
3. Electronics and electrical components industry: silver contacts on various switches, lead wires and gold-sprayed surfaces, between electronic pins, between soft wires and soft wires, copper wires and resistor pins, capacitor pins, LED lights Welding of electronic pins such as pins, socket pins, plugs, etc.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |

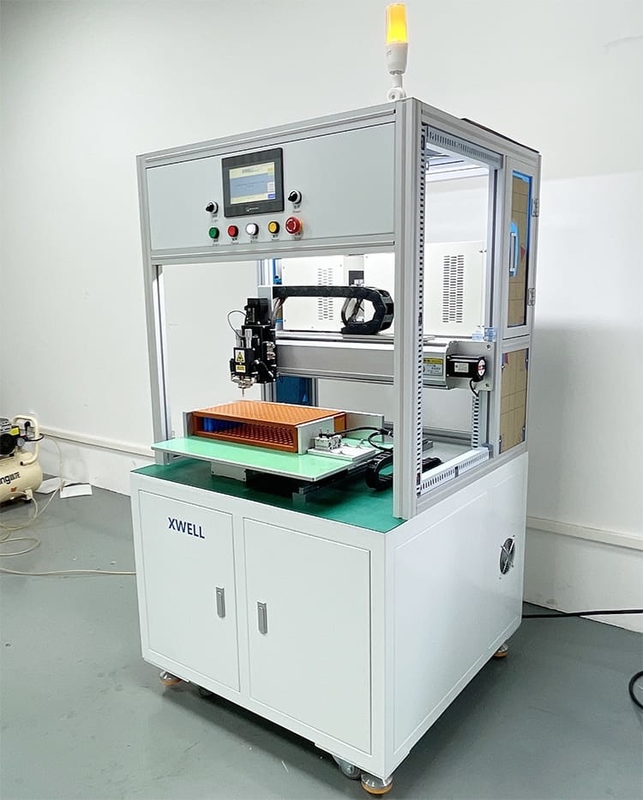

Single Side Spot Welding Machine Details
