Electric Bicycle Battery Pack Spot Welder Automatic Double Sided Spot Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 9000 - 12000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model Number: | MD-ADW | Welding Range: | 500 * 350 Mm |
|---|---|---|---|
| Battery Quantity: | 300pcs | Support Thickness: | 0.1mm-0.3mm |
| Head Number: | 2 Pcs | Power Source: | Transistor Power Supply |
| Efficiency: | 3500pcs/h | Maximum Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| User Interface: | Embedded System + Man - Machine Screen | Drive Mode: | Step Motor And Precision Guide Rail |
| Highlight: | Electric Bicycle Battery Pack Spot Welder,Double Sided Battery Pack Spot Welder,Battery Double Sided Spot Welding Machine |
||
Product Description

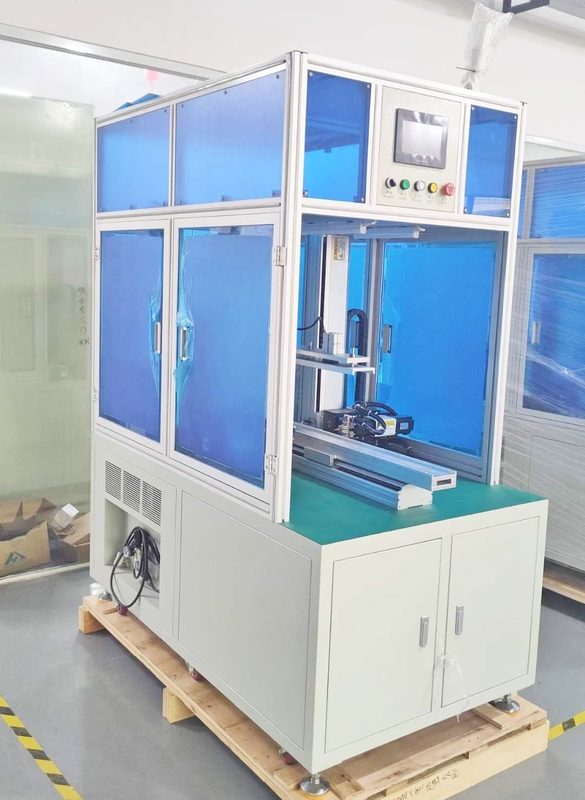

Electric Bicycle Battery Pack Automatic Double-Sided Spot Welding Machine
Double-Sided Spot Welding Machine Application
Used for welding electric motorcycle battery, UPS backup battery, new energy vehicle module, electric bicycle battery.
Double-Sided Spot Welding Machine Features
1. LCD screen: coordinate parameters can be imported by U disk, the production quantity is automatically collected, and the current production efficiency is displayed
2. Safety grating protection: Both sides are protected by safety gratings to prevent personnel from being injured during operation
3. Water-cooled circulation welding head: The welding head adopts water-cooling circulation to dissipate heat. When welding with instantaneous high current, it always maintains a constant temperature state, effectively reducing the loss of welding needles and improving the welding effect
4. PC industrial control system + motion control card: It adopts the control system of "embedded [PC industrial control system + motion control card] + 19-inch LCD liquid crystal display" to display the running status in a timely manner, and is easy to operate and maintain
5. High-precision servo motor: the operating mechanism adopts servo motor with linear module for precise positioning
6. Transistor power supply: Transistor power supply is selected, with its own current monitoring system, which can monitor the welding current, alarm and remind, and effectively solve the problems of false welding and false welding. The welding is more stable, the sparks are small and the welding slag is less
7. Metal structure fuselage: The whole machine adopts a whole metal structure body, which is more stable during the operation of the equipment and has low operating noise
Double-Sided Spot Welding Machine Description
The MD-ADW Double Side Automatic Battery Pack Spot Welding Machinew is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
MD-ADW is double welder design, the positive and negative pole of the battery can be welded at the same time, the efficiency is improved by 2 times compared to the single side welding machine.
Double-Sided Spot Welding Machine Specification
| Model | MD-ADW |
| Y-axis travel | 500mm |
| Z-axis travel | 350mm |
| Spot welding speed | 0.3s / point; 5000pcs / h |
| Maximum speed of motor drive | 1000mm/s |
| The maximum number of batteries loaded | 300pcs (standard 18650 lithium battery) |
| Number of groups for storing files | 99 groups |
| Operating system | Embedded system + man-machine screen |
| Transmission | Stepper + imported precision linear guide (optional servo + screw) |
| Power supply | Single-phase 220V ± 10% / 50Hz ± 10% |
| Air supply | 0.4 ~ 0.6Mpa |
| Weight | 350KG |
| Dimensions | 1100mm*900mm*1930mm |
Double-Sided Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
