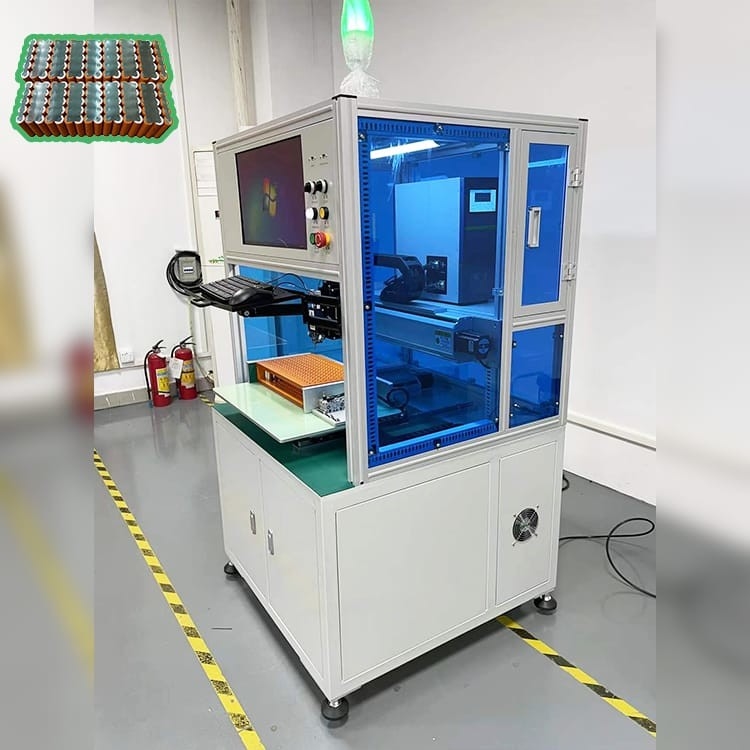

5000A 8000A DC Auto Single Side Spot Welding Machine With Computer Sotware
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000-12000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Battery Type: | 18650, 26650... | X-axis Travel: | 400 Mm |
|---|---|---|---|
| Y-axis Travel: | 400 Mm | Welding Current: | 5000A 8000A |
| Operating System: | Windows And Software | Transmission Mode: | Screw Rod+precision Linear Guide Rail |
| Max Spot Welding Rate: | 0.5S/point; 1500-1800pcs/h | Welding Head Spring Pressure Range: | 1.0 - 5kg |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | 8000A DC spot welder for battery packs,Sotware spot welder for battery packs,Auto Single Side Spot Welding Machine |
||
Product Description
5000A 8000A DC Welding Power Supply Auto Single Side Spot Welding Machine With Computer Sotware
Single Side Spot Welding Machine Application
Photovoltaic, power battery, NiMH lithium battery and other batteries are connected with nickel alloy strip, aluminum nickel composite strip, wire and guide strip, household electrical parts and guide strip, hardware accessories, copper and silver products, stainless steel peripheral connection, bulb foot welding, electronic parts, all kinds of high and low conductive metal welding, etc.All of our E Bikes Battery Assembly are greatly appreciated in a variety of different markets throughout the world.
Single Side Spot Welding Machine Features
1. Computer software display, more convenient operation and clearer display
2. Three file programming modes, manual input, array, CAD drawing import, simple and fast response to various complex program editing
3. The welding head has the function of air cooling or water cooling, which can effectively reduce the influence of spot welding needle temperature on welding quality
4. It can store up to 99 groups of files, which is easy to call and does not need complicated process of line changing and machine adjusting
5. The spot welding program of A side and B side of fixture can be switched.
Single Side Spot Welding Machine Advantages
1. Induct the load voltage, control the voltage in the feedback mode, and realize high-quality welding.
2. Power on mode of pre heat and main heat: preheat before welding to ensure stable welding quality.
3. Keep the continuity of energy density, short welding time, reduce the deformation and discoloration of base metal. (the welding time is controlled in microseconds, and the mode of continuous output)
4. Easy to change from low current to high current, suitable for precision welding.
5. The upper and lower limits of current can be set to judge whether the welding quality is good or not, which is suitable for the welding automation platform.
6. The welding current will rise with the power on time to ensure the welding effect.
7. Stable control system
8. High configuration regulating device
9. High precision working procedure
10. High cost performance of products
Product Specification
|
X-axis stroke
|
400mm (customizable)
|
Operating system
|
Windows and software |
|
Y-axis stroke
|
400mm (customizable)
|
Transmission mode
|
Screw rod+precision linear guide rail
|
|
Max spot welding rate
|
0.5S/point; 1500-1800pcs/h
|
Driving mode
|
Hybrid servo motor
|
|
Max speed of motor drive
|
1000mm/S
|
Nickel welding thickness
|
0.1mm-0.3mm
|
|
Max loaded cell (18650)
|
About 500pcs (20 * 25)
|
Dimension
|
900L*900W*1750H
|
|
No. of file groups saved
|
99 groups
|
Positioning accuracy
|
±0.02mm
|
|
Weight
|
200KG
|
Horizontal bearing weight
|
15kg (OEM)
|
Main Parts List
| Name | Qty |
| X-axis module | 1 set |
| Y-axis module | 1 set |
| Welding host | 1 pcs |
| Welding head | 1 set |
| Clamping mechanism | 1 set |
| Welding mould | 1 sets |
| Computer | 1 pcs |
| Motion controller | 1 pcs |
| Servo motor | 2 sets |
| Pneumatic element | 1 set |
| Machining parts | 1 batch |
| Control system | 1 set |
| Machine frame | 1 set |
| Alarm system | 1 set |
Single Side Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack)."
