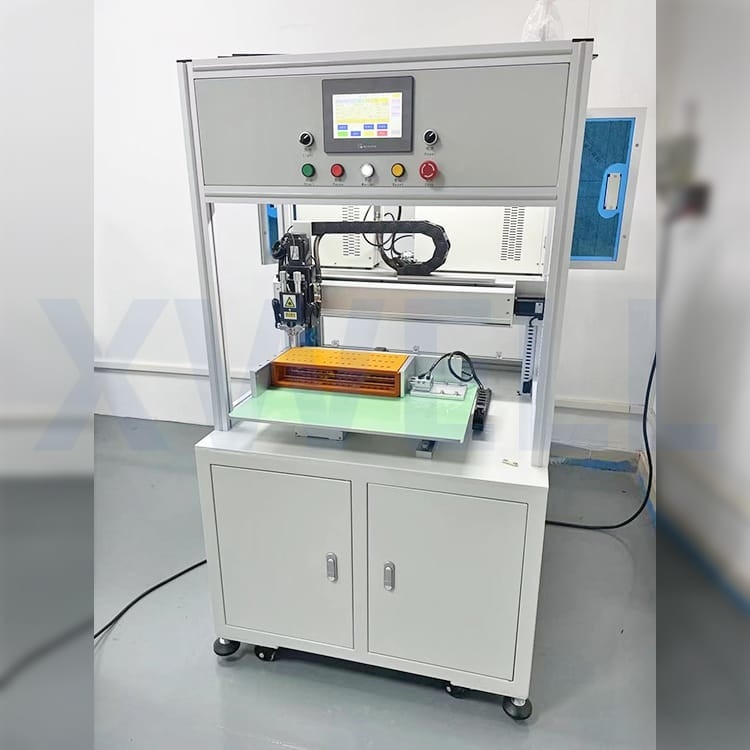

Electric Motor Automatic Spot Welding Machine For Battery Pack 18650 26650 32650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7000-8000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Type: | Single Side Spot Welding | Welding Range X: | 400 Mm |
|---|---|---|---|
| Welding Range Y: | 400 Mm | Welding Speed: | 0.3s/point |
| Head Move Distance: | 50 Mm | Control Method: | Microcomputer Control |
| Spot Welding Machine: | DC Inverter Welding Machine Power Supply | Welding Current: | 5000A 8000A |
| Voltage: | 220V And 380V | Power: | 4000 W |
| Highlight: | Battery Pack Automatic Spot Welding Machine,Single side Automatic Spot Welding Machine,4000W spot welding machine for battery pack |
||
Product Description
Electric Motor 18650 26650 32650 Single Side Battery Tab Automatic Spot Welding Machine for Battery Pack
Product Description
The MD-ASW Single Side Automatic Battery Pack Spot Welding Machinew is a important machine for cylindrical battery pack assembly.
Which have below advantages:
1. The spot welding efficiency is higher, the speed of each welding point is ≥O.5s (depending on the speed of the optional welding machine), the single-sided spot welding machine can reach 2800 cells per hour
2. The core parts are imported from Japan and Taiwan. The precision, stability and life of the whole machine are more than doubled compared with other domestic parts.
3. Welding automatic alarm and stop function, can continue spot welding after clearing the teaching obstacle
4. The machine has its own power-off or continue function, and the position can be adjusted manually for spot welding
5. The welding machine is optional, and different welding machines can be selected according to different requirements of customers to effectively meet customer needs.
Product Specifications
1. Equipment power supply: 3-phase~380V±10%/50Hz±10%;
2. Equipment air pressure: 0.3～0.6Mpa
3. Equipment weight: 250 KG;
4. Dimensions: 900mm(L)*900mm(W)*1650mm(H);
5. Use environment:
1). Please avoid using this equipment in places with high temperature, high humidity, vibration or shock, metal powder, and welding spatter, and pay attention to the control of the ambient temperature around the equipment;
2). The equipment must be grounded and separated from the personnel grounding wire;
6. Equipment service life: more than 7 years.
Product Application
With the customized fixture jig, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical battery pack, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Stucture
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Welding range | 400*400mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300-600 pcs |
| Welding speed | Max 0.35s/spot, 2800 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Operation system | Microcomputer and touch screen user interface |
| Driver mode | Motro and precision guide rail |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 8000 W |
| Size | 900L*900W*1930Hmm |
| Weight | 300kg |
Product Details
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
