Li Ion Battery Grading System 5V 3A 512 Channel Tester Machine For 18650 32650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-5V3A-512 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Channel Number: | 512 Channels | Specification: | 5V 3A |
|---|---|---|---|
| Support Battery Specifications: | 18650, 32650... | Chassis Color: | White |

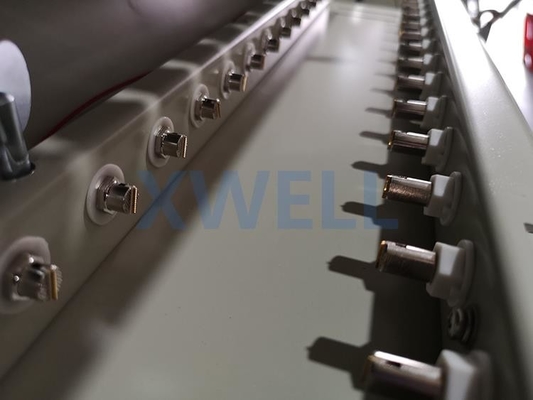

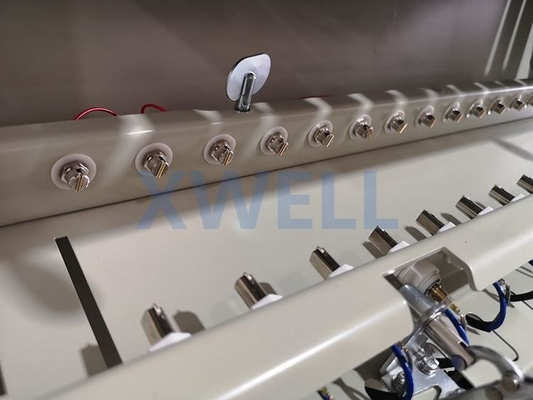

| Fixture Form: | 65 Blue And White Buckle | Fixture Spacing: | 85CM |
| Power Supply: | Three-phase Five-wire System AC380V±10%, 50HZ | Working Power Consumption: | ≤14KW |
| Working Environment: | Temperature 0~40℃, Relative Humidity≤80% | Cooling Method: | Natural Intake, Upward Exhaust |
| Highlight: | battery Grading System 512 channels,512 Channel Battery Grading System,Li Ion Battery Grading System CE |
||
Product Description
Li Ion Battery Charge Discharge Grading System 5V3A 512 Channel Tester Machine
Product Description

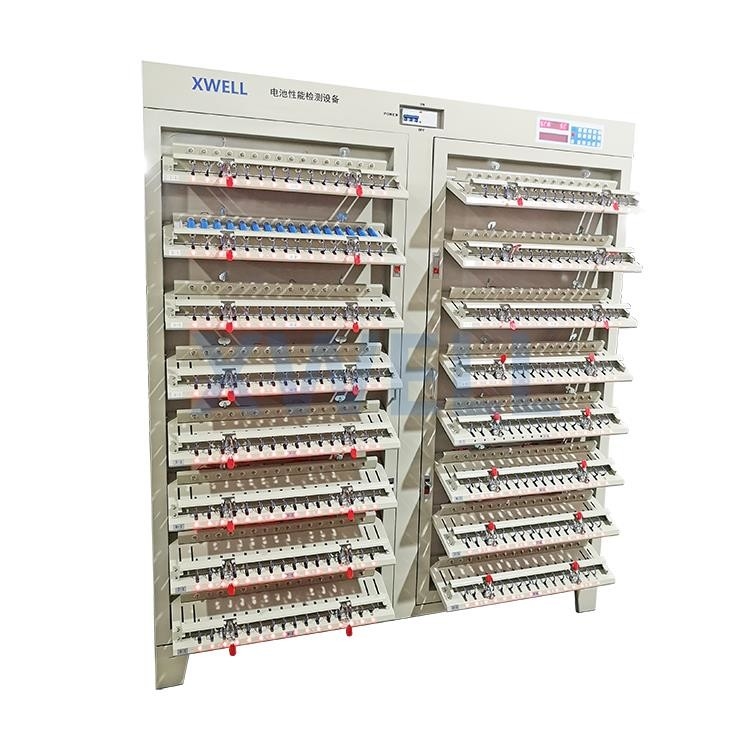

XW-5V3A-512 is mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.
Software Features
1. Use the graphical operation interface to display data such as voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors.
2. Arbitrary segmented battery capacity indication (up to 100 segments)
3. The data points can be recorded according to the changing conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of the curve data points is ≤10 seconds.
4. Battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.)
Automatic calculation of constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, etc.
5. Operator permission setting, hierarchical operation
6. Can display charge and discharge curve, cycle diagram
2. Arbitrary segmented battery capacity indication (up to 100 segments)
3. The data points can be recorded according to the changing conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of the curve data points is ≤10 seconds.
4. Battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.)
Automatic calculation of constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, etc.
5. Operator permission setting, hierarchical operation
6. Can display charge and discharge curve, cycle diagram
Product Specification
| Model | XW-5V3A-512 |
| Device channel number | The whole machine has a total of 512 channels |
| Dimensions | Length 1684MM, width 756MM, height 1840MM, chassis width 500MM |
| Chassis color | Standard blue and black (customizable) |
| Fixture form | 65 blue and white buckle |
| Fixture spacing | 85CM |
| Support battery specifications | Polymer battery |
| Power supply | Three-phase five-wire system AC380V±10%, 50HZ |
| Working power consumption | ≤14KW |
| working environment | Temperature 0~40℃, relative humidity≤80% |
| Cooling method | Natural intake, upward exhaust |
Product Application
8/40/64/80/256/512 Channel Battery Cell/Pack Testing System Battery Tester
