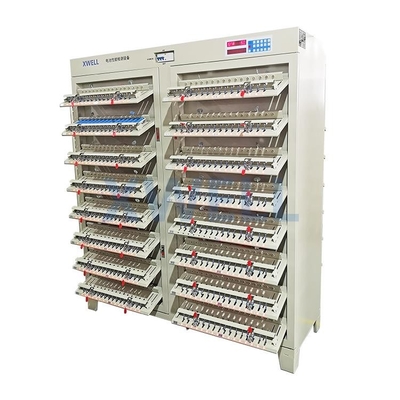

5V 3A 512 Channels Battery Charge Discharge Machine Capacity Grading For Cylindrical Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | S11-512-6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Machine Type: | Cylindrical Cell Grading Machine | Cell Type: | 18650, 26650, 21700, 32650, 32700 |
|---|---|---|---|
| Input: | 380V 3P | Power: | 14KW |
| Channels: | 512 Channels | Battery Type: | Cylindrical Battery |
| Charging Current: | Range: 0-5v For Charging, 0.8v-5v For Discharging Accuracy: ±(0.05% Of Reading + 0.1% Of Range) | Current: | Range: 5mA – 2/3/5 A Accuracy: ±(0.05% Of Reading + 0.1% Of Range) |
| Weight: | 210KG | Size: | 2000*400*2000 Mm |
| Highlight: | Cylindrical Cell Battery Charge Discharge Machine,Capacity Grading Battery Charge Discharge Machine,512 Channels battery discharge machine |
||
Product Description
1 Each equipment can do constant current constant voltage charging and constant current discharge testing for 512 pcs of cell which is within the voltage range.
2 Constant current and constant voltage power supply, constant current to constant voltage switching without impact, especially suitable for lithium ion battery charging requirements.
3 This equipment adopts AVR single-chip computer as the control center, and cooperates with the peripheral sampling circuit, which can be controlled by the upper computer. When connected to the computer, the complete charge and discharge curve of all channels can be saved. Or it can be separated from the upper computer and operated by the control panel to complete constant current and constant voltage charging, constant current discharge test, etc.
4 Each battery has its own independent constant current and constant voltage source, and the self-forming loop does not affect each other.

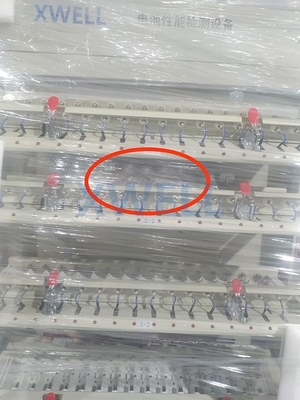

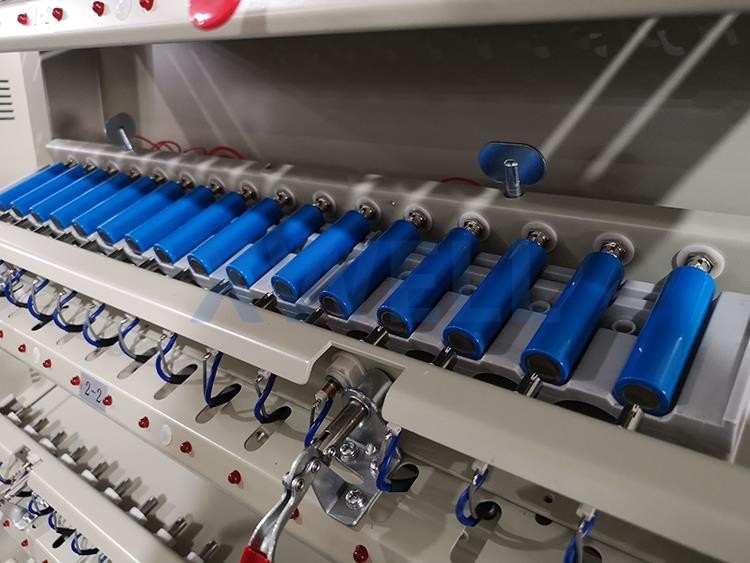

5 A light-emitting diode is mounted on each of the battery fixtures as an operational status display, and when the discharge is completed, it can be used to indicate battery capacity sorting.
|
Product Name
|
512 channels battery charge and discharge grading machine
|
|
Model
|
XW-5V3A-512 |
|
Input
|
220V 50/60 Hz
|
|
Power
|
14 Kw
|
|
Channels
|
512 channels
|
|
Battery Type
|
Cylindrical battery, 18650, 26650, 21700, 32650, 32700
|
|
Charging current
|
Range: 0-5v for charging, 0.8v-5v for discharging Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Current
|
Range: 5mA – 2/3/5 A Accuracy: ±(0.05% of reading + 0.1% of range)
|
|
Weight
|
210KG
|
|
Size
|
2000*400*2000 mm
|
