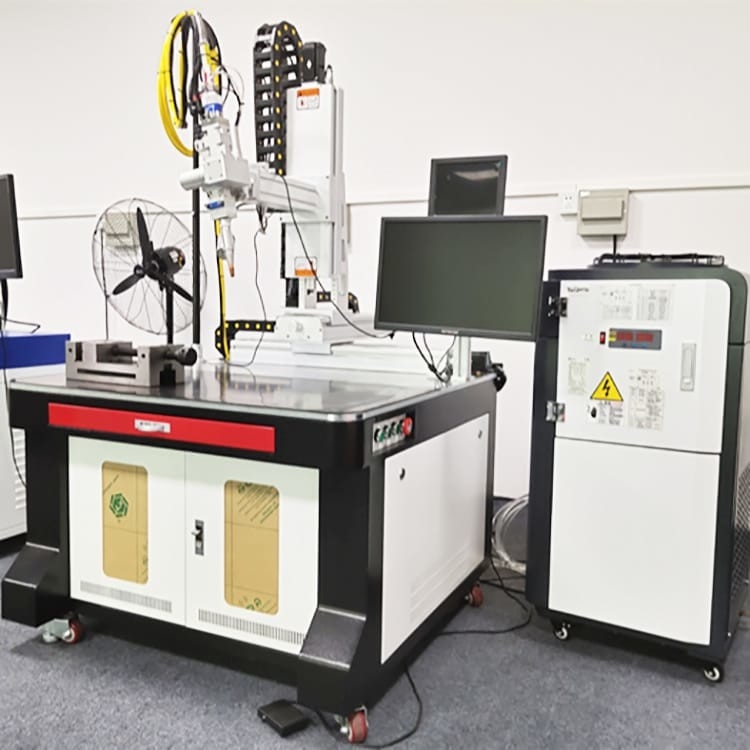

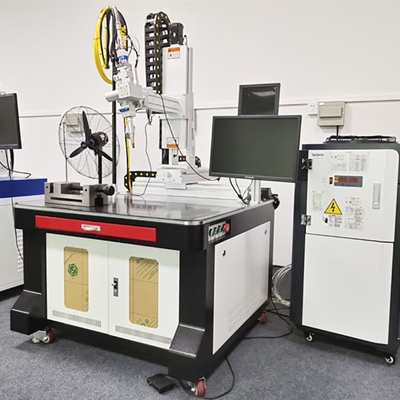

2000w Battery Laser Welding Machine , Cylindrical Pouch Cell Assembly Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-C1000W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 10000 - 22000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Model: | XW-2000W/3000W | Welding Head Number: | 1 Pcs |
|---|---|---|---|
| Laser Power: | 2000w/3000w | Welding Speed: | 1s/spot, 3600pcs/h |
| XYZ Axis Drive: | Servo Motor | Pulse Width: | 0.3-20ms |
| Fiber Cable Length: | 10m | Working Voltage: | 220V/380V/32A |
| Highlight: | Cylindrical pouch cell assembly equipment,2000w Battery Laser Welding Machine,Cylindrical Battery Laser Welding Machine |
||
Product Description
High Precision Laser Welding Machine For Cylindrical Prismatic Pouch Cells Lithium Battery Pack Assembly
Overview of continuous laser welding machine
Integrate the highest configuration in the industry! World class quality!
XWELL continuous fiber laser welding machine, with its precise welding process, ultra-high cost performance and perfect after-sales service, has won the praise of global users. The
products are sold well all over the world, and the customer satisfaction is 100%. Due to the processing of the solder joint is extremely fine, flat, beautiful, there have been customers praise "welding process can be called seamless"
Product advantages
1. The laser beam quality is excellent, the welding speed is fast, and the weld is firm and beautiful, which brings efficient and perfect welding scheme for users;
2. Industrial PC control, the workpiece can be planar trajectory movement, welding points, straight lines, circles, squares or any plane graphics composed of straight lines and arcs;
3. High electro-optic conversion rate, low energy consumption, long-term use can save a lot of processing costs for users;
The equipment has high reliability and can be processed continuously and stably for 24 hours to meet the needs of industrial mass production and processing;
4. The special aircraft has strong customization ability, and can be customized according to customer needs.
|
SPECIFICATIONS
|
|||
|
XW-2000W
|
XW-3000W
|
||
|
Welding Head Number
|
1
|
1
|
|
|
Travel
|
1000*700*400mm
|
1000*700*400mm
|
|
|
Welding Speed
|
1s/spot, 3600pcs/h
|
1s/spot, 3600pcs/h
|
|
|
Welder Power Suppler
|
2000W 3000W
|
||
|
XYZ axis drive
|
Servo motor
|
||
|
Cooling capacity
|
5.2KW
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Computer
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
3 phase, 380V/50Hz
|
||
|
Laser wavelength
|
1080
|
||
|
Laser frequency
|
10-20000Hz
|
10-20000Hz
|
|
|
Machine Weight
|
400kg
|
450kg
|
|
Laser welding machine sample for AL busbar of battery pack
Laser welding sample for prismatic battery pack with AL busbar link
Laser welding sample for prismatic battery pack with copper busbar link
