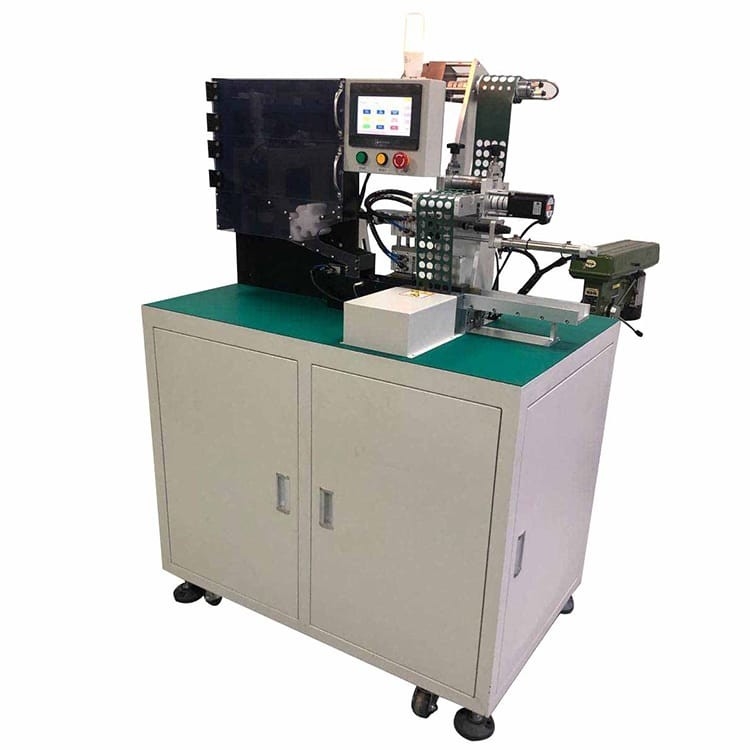

Barley Paper Battery Cell Sticking Machine Positive Protection 100 Mm
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Input Gas Source: | 0.5-0.8Mpa | Function Style: | Stepper Drive With Pneumatic |
|---|---|---|---|
| Input Voltage: | AC220V | Sticker Matrials: | Barley Paper Or PVC |
| Sticker Matrials Size: | Barley Paper Maxium 350mm;Scroll Internal Diameter 72-75MM | Adaptable Battery Cell: | 18650 Battery |
| Power: | Electric Power Or Pneumatic | Control Instrument: | 7.5feet Contact Screen,PLC Programming Machine And Step Motor |
| Electrodes To The Body Distance: | 100 Mm (Scalable Adjustable) | Producivity: | 4000pcs/h; Singal 4pcs |
| Highlight: | Positive Protection Battery Cell Sticking Machine,100 mm Battery Cell Sticking Machine,Barley Sticker Sticking Machine |
||
Product Description
High Efficiency Fully Automatic Paper Sticker Sticking Machine For Cylindrical Battery Positive Protection
Product Features
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labor cost.
Mechanical structure
1) The equipment has compact structure design, beautiful appearance and small space occupation.
2) Manual whole-box feeding of equipment.
3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
4) The equipment is equipped with universal movable casters, which makes it easy to move and move.
Product Specification
|
Input gas source
|
0.5-0.8Mpa
|
|
Function style
|
Stepper drive with pneumatic
|
|
Input voltage
|
AC220V
|
|
Sticker matrials
|
Barley paper or PVC
|
|
Sticker matrials size
|
Barley paper Maxium 350mm;Scroll Internal Diameter 72-75MM
|
|
Adaptable battery cell
|
18650 battery
|
|
Power
|
Electric power or pneumatic
|
|
Control instrument
|
7.5feet contact screen,PLC programming machine and step
motor |
|
Electrodes to the body
distance |
100 mm (Scalable adjustable)
|
|
Producivity
|
4000pcs/h; singal 4pcs
|
|
External dimensions
|
1.2M*0.9M*1.7M
|
|
Power
|
<3KW
|
|
Sticker efficiency
|
>80PPM
|
|
Weight
|
|
|
Sticker Frame Material
|
High quality thick cold rolled steel sheet, aluminium material
|
|
Indoor temperature
|
-30℃-50℃
|
|
Indoor humidity
|
Above 55%
|

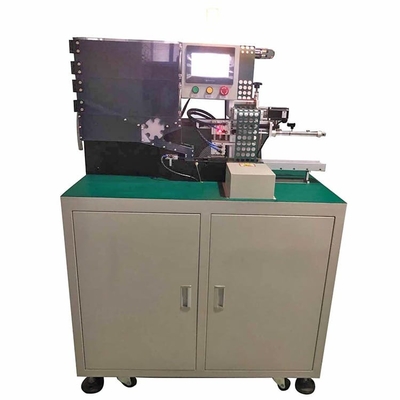

Cylindrical cell papaer sticking machine details
