Lab Battery Cell Sorting Machine 10 Channels For 26650 32650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Power Supply: | AC220V ± 10% 50Hz | Power Consumption: | ≤1000W |
|---|---|---|---|
| Display Screen: | Large Size LCD Screen/Touch Screen | Compressed Air Pressure: | 0.5 ~ 0.7Mpa |
| Sorting Speed: | ≥ 90PPM | Chance Of Damaged Product: | ≤0.1% |
| NG Equipment Failure Rate: | ≤0.1% | Productivity: | 5000pcs/h |
| Highlight: | 10 Channels Battery Cell Sorting Machine,32650 Battery Cell Sorting Machine,lithium ion battery making machine |
||
Product Description
Lab 18650 26650 32650 10 Channels Battery Sorter Sorting Machine for Cylindrical Battery Pack Research
Product Description
The 10-channel cylindrical battery sorter is a machine consisting of a voltage internal resistance tester, which is used to test the voltage internal resistance of batteries. The power of each battery is calculated according to the software settings of the host computer, and the batteries of different grades are converted according to the judgement results. Different channels for automatic classification of battery products.
The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.
Product Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 10 Channel automatic cell sorter is designed to sort cylindrical cells
3. Sort by cell's voltage and impedance up to 10 groups
4. Automatic sorting control
5. Fast sorting speed ≥90PPM
6. Easy to refill cells during the process
7. Wheels design, easy to move the machine to any operating place
8. Sortting channel: 5-22 optional
Product Specification
| Model | MD-BS10 |
| Power supply | AC220V ± 10% 50Hz |
| Power Consumption | ≤1000W |
| Display Screen | Large size LCD screen/Touch screen |
| Compressed Air Pressure | 0.5 ~ 0.7Mpa |
| Sorting Speed |
≥ 90PPM |
| Chance of Damaged Product | ≤0.1% |
| NG Equipment Failure Rate |
≤0.1% |
| Open Circuit Voltage Accuracy |
± 0.1% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.1 milliohm |
| Productivity | 5000pcs/h |
| Dimension |
1330x920x1600mm |
| Adaptation Battery |
Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.) |
| Receiving Channel | 10 channels |
| Operating Temperature Range |
25 ° C ± 5 ° C |
| Humidity | ≤85% |
| Total weight | 300kg |
Battery cell soring machine structure

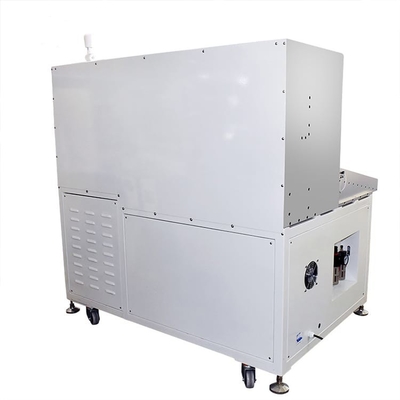

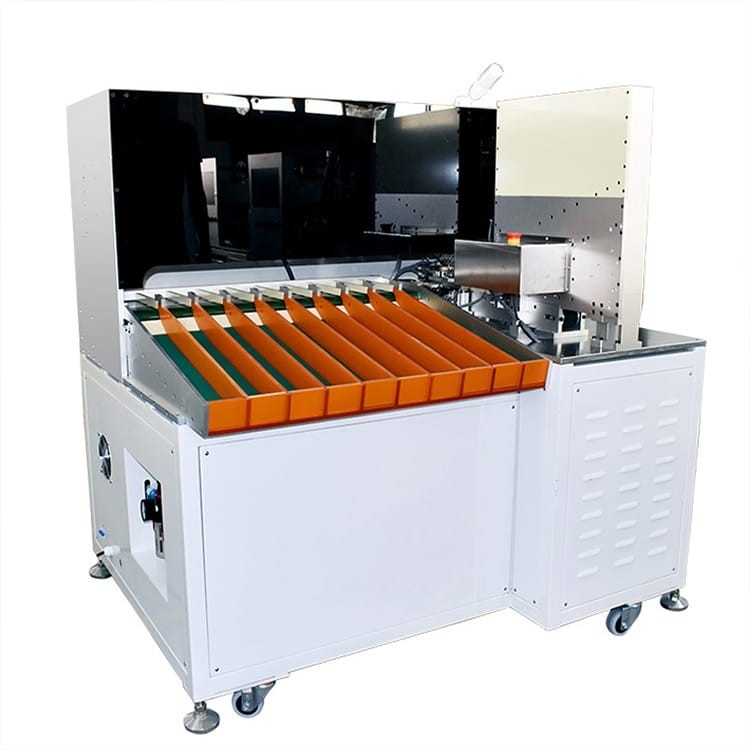

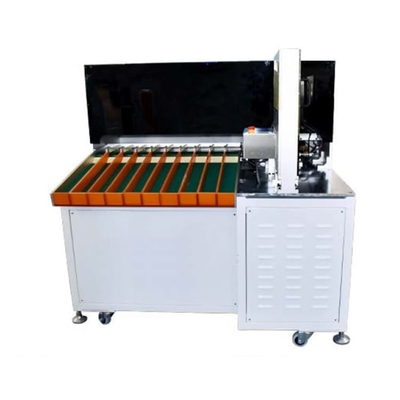

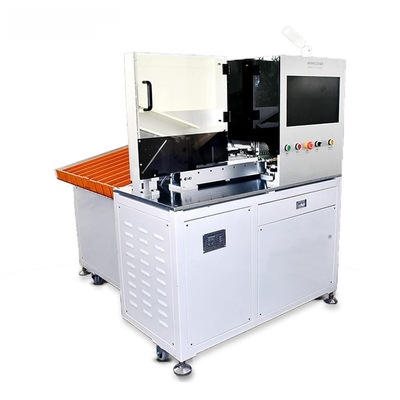

Battery cell sorting machine details
